HP EliteDesk 800 G4 23.8-inch All-in-One PC
Powered for the enterprise

HP EliteDesk 800 G4 23.8-inch All-in-One PC

HP Business Desktops
HP EliteDesk 800 G4 NonTouch All-in-One PC
HP EliteDesk 800 G4 23.8-inch NonTouch All-in-One PC - I5-8500 8GB 1TB W10P
#4HK03UT#ABA
Our Price: $1,127.00
HP EliteDesk 800 G4 23.8-inch NonTouch All-in-One PC - I5-8500 8GB 256GB SSD W10P
#4HK05UT#ABA
Our Price: $1,178.00
HP EliteDesk 800 G4 23.8-inch NonTouch All-in-One PC - I5-8500 3G 16GB 256GB W10P
#5JZ44UT#ABA
Our Price: $1,279.00
HP EliteDesk 800 G4 23.8-inch NonTouch All-in-One PC - I7-8700 8GB 1TB W10P
#4HK08UT#ABA
Our Price: $1,350.00
HP EliteDesk 800 G4 23.8-inch NonTouch All-in-One PC - I7-8700 8GB 256GB SSD W10P
#4HK10UT#ABA
Our Price: $1,370.00



Overview:

Modernize any workspace with an AiO PC that makes a great first impression. The HP EliteOne AiO delivers serious performance, engaging collaboration, multi-faceted security, and purposeful manageability in a stunning and sleek 23.8-inch diagonal micro-edge bezel design.

Powered for the enterprise

  • Windows 10 Pro
  • 23.8" diagonal screen

Features:

Amazing from any angle

Count on this purposefully designed AiO to impress. Work in style on the elegant HP EliteOne 800 AiO with its thin profile, micro-edge anti-glare display, and superb cable management.

Performance first

Users will enjoy powerful 8th Gen Intel Core™ processors , optional Intel Optane™ memory , and optional AMD Radeon™ discrete graphics .

Strong security, powerful manageability

Get powerful protection and simplified management from our most secure and manageable PCs. HP Sure Start Gen4 protects against BIOS attacks while the HP Manageability Integration Kit Gen2 allows you to easily manage devices through Microsoft System Center Configuration Manager.

See and hear them clearly

Collaborate with the sharpness of a face-to-face meeting on the 23.8-inch diagonal FHD display with crystal-clear audio and either a front-facing popup IR camera with a rear-facing FHD Camera , or a front facing pop-up FHD camera.

Featuring

  • Power through your day with Windows 10 Pro with built-in security, collaboration, and connectivity.
  • Protect the firmware that antivirus can’t reach! The hardware-enforced selfhealing protection offered by HP Sure Start Gen4 automatically recovers the BIOS from malware, rootkits, or corruption.
  • Keep your critical applications and processes running even if malware tries to shut them down with self-healing protection.
  • Help protect your PC from websites, attachments, malware, ransomware, and viruses with hardware-enforced security from HP Sure Click
  • Quickly and securely restore PCs to the latest image using a network connection with HP Sure Recover.
  • Improve the quality and security of custom Windows images with HP Image Assistant Gen3 which assists ITDMs with image creation, identifies problems, and provides recommendations and remediation.
  • The HP Manageability Integration Kit helps speed up image creation and management of hardware, BIOS, and security through Microsoft System Center Configuration Manager.

Specifications:


HP EliteOne 800 G4 23.8-inch All-in-One PC Specifications
Operating system Windows 10 Pro 64 – HP recommends Windows 10 Pro.
Windows 10 Pro 64 (National Academic only)
Windows 10 Home 64
FreeDOS
Processor Family 8th Generation Intel Core™ i7 processor (i7-8700); 8th Generation Intel Core™ i7 + processor (Core™ i7 and Intel Optane™ memory); 8th Generation Intel Core™ i5 + processor (Core™ i5 and Intel Optane™ memory); 8th Generation Intel Core™ i5 processor (i5-8500, i5-8600); 8th Generation Intel Core™ i3 processor (i3-8100, i3-8300); Intel Pentium processor (G5400, G5500 are Windows 10 only)
Processors Intel Pentium Gold G5400 with Intel UHD Graphics 610 (3.7 GHz, 4 MB cache, 2 cores)
Intel Core™ i3-8300 with Intel UHD Graphics 630 (3.7 GHz, 8 MB cache, 4 cores)
Intel Pentium Gold G5500 with Intel UHD Graphics 630 (3.8 GHz, 4 MB cache, 2 cores)
Intel Core™ i7-8700 vPro™ processor with Intel UHD Graphics 630 (3.2 GHz base frequency, up to 4.6 GHz with Intel Turbo Boost Technology, 12 MB cache, 6 cores)
Intel Core™ i7+ 8700 vPro™ processor (Core™ i7 and 16 GB Intel Optane™ memory) with Intel UHD Graphics 630 (3.2 GHz base frequency, up to 4.6 GHz with Intel Turbo Boost Technology, 12 MB cache, 6 cores)
Intel Core™ i5-8600 vPro™ processor with Intel UHD Graphics 630 (3.1 GHz base frequency, up to 4.3 GHz with Intel Turbo Boost Technology, 9 MB cache, 6 cores)
Intel Core™ i5+ 8600 vPro™ processor (Core™ i5 and 16 GB Intel Optane™ memory) with Intel UHD Graphics 630 (3.1 GHz base frequency, up to 4.3 GHz with Intel Turbo Boost Technology, 9 MB cache, 6 cores)
Intel Core™ i5-8500 vPro™ processor with Intel UHD Graphics 630 (3 GHz base frequency, up to 4.1 GHz with Intel Turbo Boost Technology, 9 MB cache, 6 cores)
Intel Core™ i5+ 8500 vPro™ processor (Core™ i5 and 16 GB Intel Optane™ memory) with Intel UHD Graphics 630 (3 GHz base frequency, up to 4.1 GHz with Intel Turbo Boost Technology, 9 MB cache, 6 cores)
Chipset Intel Q370
Form Factor All-in-one
Maximum Memory 32 GB DDR4-2666 SDRAM
Transfer rates up to 2666 MT/s.
Memory slots 2 SODIMM
Internal Storage 500 GB up to 1 TB 7200 rpm SATA
2 TB 5400 rpm SATA 500 GB SATA SED Opal 2 HDD
500 GB 7200 rpm SATA FIPS SED
256 GB up to 512 GB SATA SED Opal 2 TLC SSD
256 GB up to 512 GB SATA FIPS SSD
128 GB up to 512 GB PCIe NVMe™ M.2 SSD
128 GB up to 1 TB PCIe NVMe™ TLC M.2 SSD
256 GB up to 512 GB PCIe NVMe™ SED Opal 2 TLC M.2 SSD
128 GB up to 512 GB SATA SSD
Optical drive HP 9.5 mm Slim DVD-Writer; HP 9.5 mm Slim DVD-ROM; HP 9.5 mm Slim Blu-ray writer
Display 23.8" diagonal FHD IPS widescreen WLED-backlit anti-glare (1920 x 1080)
Available Graphics Integrated: Intel UHD Graphics 630; Intel UHD Graphics 610
Audio Audio by Bang & Olufsen, headset and headphone side ports (3.5 mm), line out rear port (3.5 mm), high performance integrated stereo speakers
Expansion Slots 1 M.2 2230; 2 M.2 2230/2280 (1 PCIe M.2 2230 slot for WLAN and 2 PCIe M.2 2230/2280 slot for storage.)
Ports and Connectors Side: 1 headphone; 1 headset connector
Bottom: 1 audio-out; 1 DisplayPort™ 1.2; 1 HDMI; 1 power connector; 1 RJ-45; 2 USB 3.1 Gen 1; 4 USB 3.1 Gen 2; 1 USB 3.1 Type-C™ Gen 2
Optional: 1 SD 4 card reader
Input devices HP Conferencing Keyboard; HP USB and PS/2 Washable Keyboard; HP USB Business Slim Keyboard; HP USB Keyboard; HP USB Smart Card (CCID) Keyboard; HP Wireless Business Slim Keyboard and Mouse Combo; HP Wireless Collaboration Keyboard ; HP USB 1000 dpi Laser Mouse; HP USB and PS/2 Washable Mouse; HP USB Antimicrobial Mouse; HP USB Hardened Mouse; HP USB Optical Mouse; HP USB Premium Mouse
Communications LAN: Integrated Intel I219LM GbE LOM;
WLAN: Intel Dual Band Wireless-AC 9560 802.11ac (2x2) and Bluetooth 5 M.2 PCIe, non-vPro™ Intel Dual Band Wireless-AC 9560 802.11ac (2x2) and Bluetooth 5 M.2 PCIe, vPro™
Drive Bays One 2.5" HDD
Camera 2 MP full HD pop-up webcam with integrated dual array digital microphone, maximum resolution of 1920 x 1080; 2 MP, 1080p, FHD pop-up Camera with IR sense (front) and 2 MP webcam (rear) with integrated dual array digital microphone, maximum resolution of 1920 x 1080, IR camera for face authentication with Windows Hello
Environmental Operating temperature: 10 to 35°C; Operating humidity: 10 to 90% RH
Available Software Absolute Persistence module; HP Hotkey Support; HP Noise Cancellation Software; HP Support Assistant; Intel® Unite™ with Skype for Business plug-in; Native Miracast Support; HP Wireless Wakeup; Buy Office (sold separately); HP Sure Recover; HP JumpStarts
Security management DriveLock; Hood sensor; HP BIOSphere; HP Password Manager; HP Power On Authentication; Intel® Identity Protection Technology (Intel® IPT); Power-on password (via BIOS); RAID configurations; Removable media write/boot control; SATA port disablement (via BIOS); Setup password (via BIOS); USB enable/disable (via BIOS); HP Sure Start Gen 4; HP Client Security Suite Gen 4; HP Sure Run; Parallel enable/disable (via BIOS); Serial enable/disable (via BIOS); Trusted Platform Module TPM 2.0 Embedded Security Chip shipped with Windows 10 (Common Criteria EAL4+ Certified) (FIPS 140-2 Level 2 Certified)
Management features HP BIOS Config Utility (download); HP Client Catalog (download); HP Driver Packs (download); HP System Software Manager (download); Ivanti Management Suite; HP Management Integration Kit for Microsoft System Center Configuration Management Gen 2
Power 180 W internal power supply, up to 90% efficiency, active PFC
Dimensions (W X D X H) 21.2 x 7.1 x 18.4 in
Weight 19.68 lb
Energy efficiency compliance ENERGY STAR certified; EPEAT registered; CECP
Environmental specifications Low halogen
Warranty 3 year (3-3-3) limited warranty and service offering includes 3 years of parts, labor and on-site repair. Terms and conditions vary by country. Certain restrictions and exclusions apply.

Image Gallery:

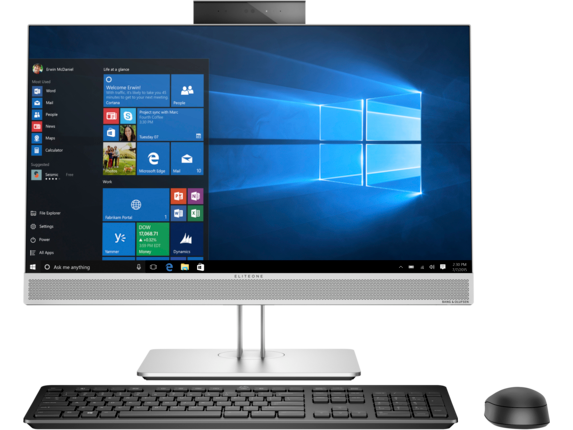

Front View

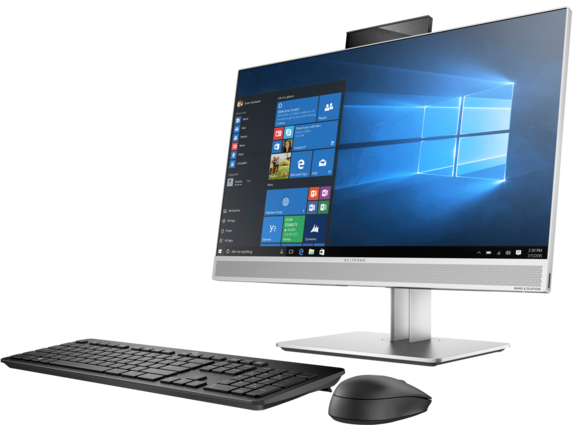

Left Angle View

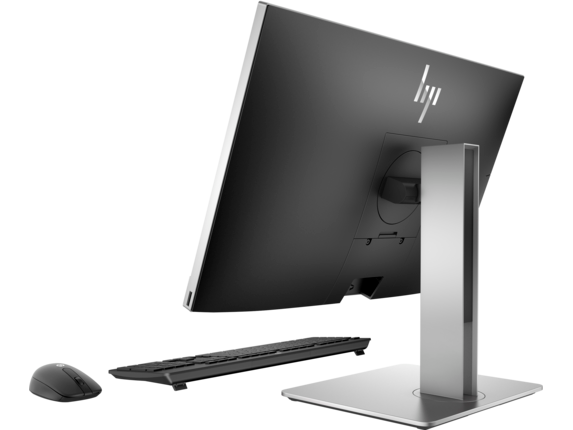

Rear View

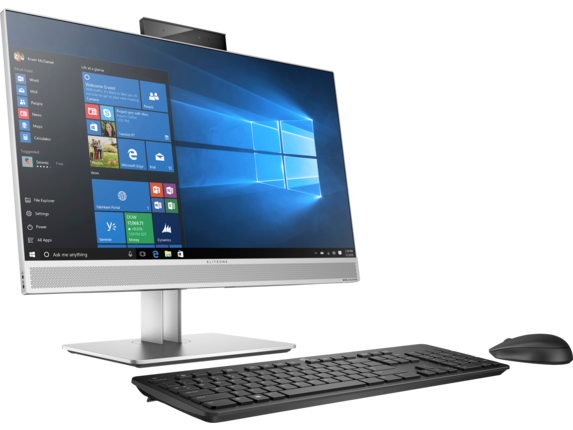

Right Angle View

Documentation:

Download the HP EliteDesk 800 G4 23.8-inch All-in-One PC Datasheet (.PDF)
