HP Engage Flex Pro Retail System
Do more in your store and beyond

HP Engage Flex Pro Retail System

HP Business Desktops
HP Engage Flex Pro Retail System
HP Engage Flex Pro Retail System - I3-8100 128GB SSD DVDRW 8GB W10P6 64BIT
#5PB01UT#ABA
Our Price: $1,720.00
HP Engage Flex Pro Retail System - I5-8500 128GB SSD 8GB W10P6 64BIT
#5PA16UT#ABA
Our Price: $1,828.00
HP Engage Flex Pro Retail System - I5-8500 128GB SSD DVDRW 8GB W10P6 64BIT
#5PA45UT#ABA
Our Price: $1,860.00
HP Engage Flex Pro Retail System - I7-8700 128GB SSD 8GB W10P6 64BIT
#5PB09UT#ABA
Our Price: $2,040.00



Overview:

Efficiently manage your retail business from the store floor to the back office with the HP Engage Flex Pro, our stable, secure, and highestperforming retail platform that delivers maximum flexibility for a range of deployments.

  • HP recommends Windows 10 Pro.

Features:

Build your best solution

Configure the perfect fit for your users and environment, whether it’s point of sale, video surveillance, processing/controlling, digital signage or OEM with flexible connectivity, graphics, and networking options and a suite of retail peripherals.

Poised to perform and expand with your business

Tackle every retail challenge with a powerful 8th Gen Intel processor and Intel Optane™ memory. Adjust capacity as your needs change with endless storage options like an Intel Optane™ SSD, SATA or M.2—up to five total drives per system.

Secure, manageable, and reliable out of the box

Reduce the cost and complexity of managing your platforms and secure your critical assets with innovative, integrated, and proactive security and manageability features for your system and its data.

Featuring

  • Stick with an OS you know with your choice of Windows 10 Pro, Windows IoT or FreeDOS.
  • Get hardware-enforced self-healing protection from HP Sure Start Gen4, manage your system across the OS with HP Manageability Integration Kit, maintain critical OS processes with HP Sure Run, and restore your image over a network with HP Sure Recover.
  • Minimize downtime with a design that goes the distance. It passes HP’s Total Test Process and has a steel chassis and gold-plated connectors that are tested to withstand temperatures up to 40° C. Extend lifespan with an optional dust filter.
  • Deploy quickly with HP Configuration Services. Plan ahead with a five-year lifecycle that lets you roll out on your schedule. Get the reassurance of a three-year worldwide limited warranty, and extend protection with optional HP Care services.

Specifications:


HP Engage Flex Pro Retail System Specifications
Operating system Windows 10 Pro 64
Windows 10 IoT Enterprise 2016 LTSC 64
FreeDOS 2.0
Processor family 8th Generation Intel Core™ i5 + processor (Core™ i5 and Intel Optane™ memory);
8th Generation Intel Core™ i7 processor (i7 8700);
8th Generation Intel Core™ i3 + processor (Core™ i3 and Intel Optane™ memory);
8th Generation Intel Core™ i5 processor (i5 8500, i5 8500T);
Intel Pentium processor; Intel Celeron processor;
8th Generation Intel Core™ i7 + processor (Core™ i7 and Intel Optane™ memory)
Available Processors Intel Core™ i3 8100 (Core™ i3 and 16 GB Intel Optane™ memory) with Intel UHD Graphics 630 (3.6 GHz, 6 MB cache, 4 cores);
Intel Core™ i7+ 8700 vPro™ (Core™ i7 and 16 GB Intel Optane™ memory) with Intel UHD Graphics 630 (3.2 GHz base frequency, up to 4.6 GHz with Intel Turbo Boost Technology, 12 MB cache, 6 cores);
Intel Celeron G4900 with Intel UHD Graphics 610 (3.1 GHz, 2 MB cache, 2 cores);
Intel Core™ i3 8100T (Core™ i3 and 16 GB Intel Optane™ memory) with Intel UHD Graphics 630 (3.1 GHz, 6 MB cache, 4 cores);
Intel Pentium Gold G5400 with Intel UHD Graphics 610 (3.7 GHz, 4 MB cache, 2 cores);
Intel Core™ i5 8500 vPro™ with Intel UHD Graphics 630 (3 GHz base frequency, up to 4.1 GHz with Intel Turbo Boost Technology, 9 MB cache, 6 cores);
Intel Core™ i7 8700 vPro™ with Intel UHD Graphics 630 (3.2 GHz base frequency, up to 4.6 GHz with Intel Turbo Boost Technology, 12 MB cache, 6 cores);
Intel Core™ i5 8500T vPro™ with Intel UHD Graphics 630 (2.1 GHz base frequency, up to 3.5 GHz with Intel Turbo Boost Technology, 9 MB cache, 6 cores);
Intel Core™ i5+ 8500 vPro™ (Core™ i5 and 16 GB Intel Optane™ memory) with Intel UHD Graphics 630 (3 GHz base frequency, up to 4.1 GHz with Intel Turbo Boost Technology, 9 MB cache, 6 cores);
Intel Core™ i5+ 8500T vPro™ (Core™ i5 and 16 GB Intel Optane™ memory) with Intel UHD Graphics 630 (2.1 GHz base frequency, up to 3.5 GHz with Intel Turbo Boost Technology, 9 MB cache, 6 cores)
Chipset Intel Q370
Form factor Small form factor
Maximum memory 64 GB DDR4-2666 SDRAM
Transfer rates up to 2666 MT/s.
Memory slots 4 DIMM
Internal storage 500 GB up to 2 TB 7200 rpm SATA
128 GB up to 512 GB 5400 rpm SATA SSHD
up to 256 GB SATA SSD SED Opal 2
128 GB up to 1 TB M.2 SATA SSD
Available Graphics Integrated: Intel UHD Graphics 630; Intel UHD Graphics 610
Discrete: NVIDIA Quadro P400 (4 GB GDDR5 dedicated); AMD Radeon™ R7 430 Graphics (2 GB GDDR5 dedicated)
Audio Conexant CX20632 codec, universal audio jack, headset and headphone front ports (3.5 mm), multi-streaming capable
Expansion slots 1 half-height PCIe x16 (x4); 2 full-height PCIe (x1); 2 half-height PCIe x4
Ports and Connectors Rear: 1 headset connector; 1 RJ-45; 1 configurable video port; 1 USB 3.1 Gen 1 (charging); 2 configurable video ports; 1 DisplayPort™ 2.0 Front: 2 USB 3.1 Gen 1
(Additional optional ports include up to 6 RS-232 (5/12V), up to 6 12V USB, 1 24V USB, 1 RJ-12 cash drawer.)
Communications LAN: Intel I210-T1 PCIe GbE; Intel I219-LM GbE
WLAN: Intel Dual Band Wireless-AC 9260 802.11ac (2x2) and Bluetooth 5 M.2, vPro™
Drive Bays One 5.25"; Two 3.5"; Two M.2
Environmenta Operating temperature: 10 to 40°C
Operating humidity: 20 to 85% RH
Available Software Buy Office; HP ePrint Driver; HP Recovery Manager; HP Support Assistant; Absolute Persistence module; HP Hotkey Support; HP PhoneWise; HP Velocity; HP Wireless Wakeup; HP ePrint Driver + JetAdvantage
Security Management Power-on password (via BIOS); Setup password (via BIOS); Trusted Platform Module TPM 2.0 Embedded Security Chip; USB enable/disable (via BIOS); Serial enable/disable (via BIOS); DriveLock; HP BIOSphere; HP Password Manager; HP Power On Authentication; Intel® Identity Protection Technology (Intel® IPT); RAID configurations; Removable media write/boot control; SATA port disablement (via BIOS); Support for chassis padlocks and cable lock devices; HP Client Security Suite Gen 4; HP Sure Start Gen 4; Solenoid lock and hood sensor; HP Sure Run; Parallel enable/disable (via BIOS); Front USB enable/disable (via BIOS); HP BIOSphere Gen4
Management features HP BIOS Config Utility (download); HP Client Catalog (download); HP Driver Packs (download); HP System Software Manager (download); Update BIOS via Cloud or Network (BIOS feature); HP Management Integration Kit for Microsoft System Center Configuration Management Gen 2
Power 250 W internal power adapter, up to 90% efficiency, active PFC
Dimensions (W x D x H) 13.27 x 14.96 x 3.94 in
33.7 x 38 x 10 cm
Weight 14.2 lb
6.44 kg
(Exact weight depends on configuration.)
Energy efficiency compliance ENERGY STAR certified and EPEAT registered configurations available
Environmental specifications Low halogen
Warranty 3 year (3-3-3) limited warranty and service offering includes 3 years of parts, labor and on-site repair. Terms and conditions vary by country. Certain restrictions and exclusions apply.

Image Gallery:

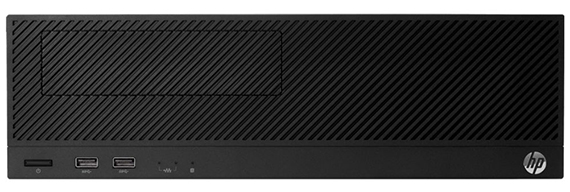

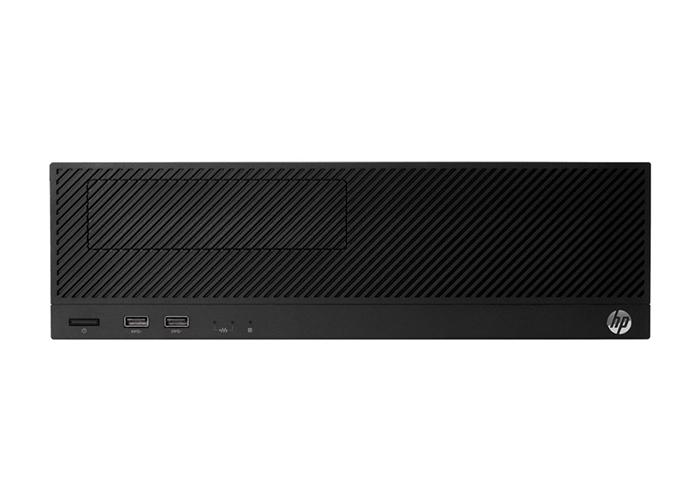

Front View

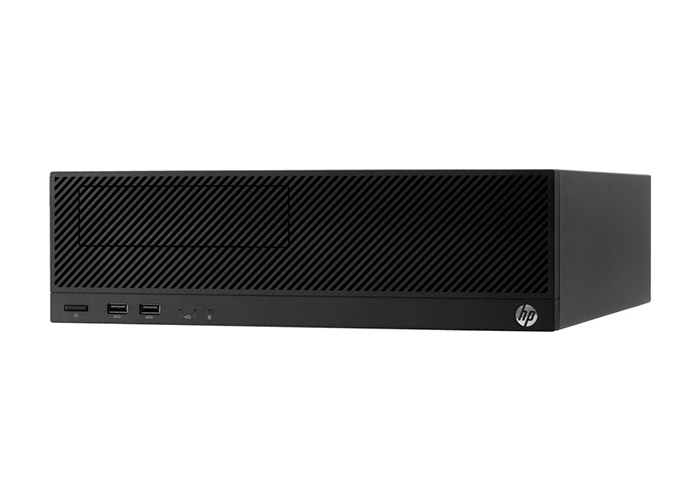

Left Angle View

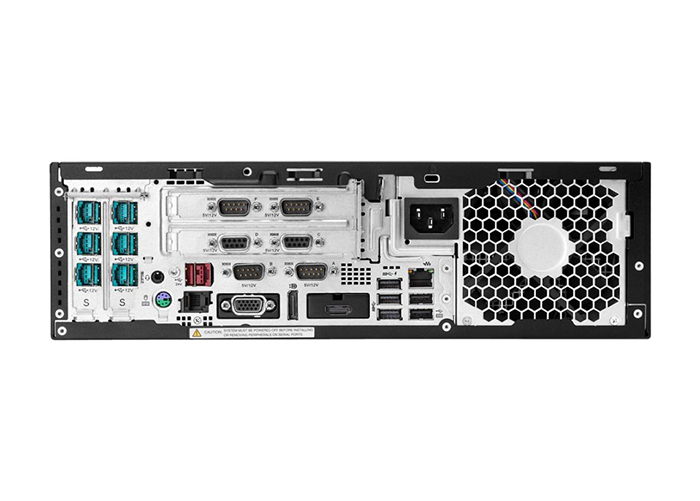

Rear View

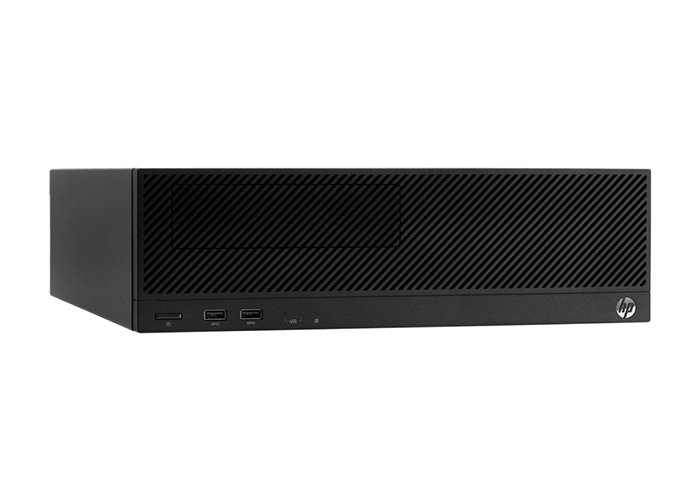

Right Angle View

Documentation:

Download the HP Engage Flex Pro Retail System Datasheet (.PDF)
