HP Z2 Small Form Factor G4 Workstation
Experience server-grade power in a desktop with impressive expandability

HP Z2 Small Form Factor G4 Workstation

HP Workstation
HP Z2 Small Form Factor G4 Workstation
HP Z2 Small Form Factor G4 Workstation - I3-8100, 3.6G 8GB 1TB DVDRW W10P 64BIT
#4YN60UT#ABA
Our Price: $788.00
HP Z2 Small Form Factor G4 Workstation - I5-8500 3G, 8GB 1TB DVDRW W10P 64BIT
#5DU81UT#ABA
Our Price: $869.00
HP Z2 Small Form Factor G4 Workstation - I5-8500 3G, 8GB 256GB SSD DVDRW W10P 64BIT
#5DU83UT#ABA
Our Price: $900.00
HP Z2 Small Form Factor G4 Workstation - I7-8700, 3.2G 8GB 1TB DVDRW W10P 64BIT
#4YN53UT#ABA
Our Price: $991.00
HP Z2 Small Form Factor G4 Workstation - I7-8700, 3.2G 8GB 1TB DVDRW W10P 64BIT
#4YN59UT#ABA
Our Price: $1,130.00



Overview:

Get high-end performance in a compact device. Take on 3D design projects and work in multiple pro apps with ease. And with near endless configuration options, it's the ideal hardware if you need a custom solution.

  • Windows 10 Pro
  • 8th Generation Intel Core™ i3 processor
  • 4 GB memory; 500 GB HDD storage
  • Intel UHD Graphics 630

Features:

Take processing to record speeds

Crush demanding single and multi-threaded workflows and take on aggressive multi-tasking without throttling. We redesigned our proprietary motherboard to give you full performance, while keeping components running cool and quiet.

Forget off the shelf. Make it your own.

Build a system matched exactly to your needs with over a million possible configurations. Keep clear of messy dongles and adapters—with customizable I/O ports you can support new, legacy and specialized equipment.

Safe guard your data. Protect your privacy

Advanced security features come standard on every Z2 Small Form Factor. System safeguards like HP Client Security Suite Gen3 and HP Sure Start Gen4 - the industry’s first self-healing BIOS - mean your device is locked down tight, so your data and identity are too.

Featuring

  • Support your unique user needs with a choice of Windows 10 Pro 64 or Linux operating systems.
  • Get powerful performance on single and multi-threaded applications with the latest generation Intel Xeon and Core™ processors.
  • Get great 3D performance with support for NVIDIA and AMD professional graphics from Entry to Mid-range 3D.
  • With dual M.2 storage slots you can install the fasted pro-grade storage hardware to unlock your storage-bound apps without sacrificing standard PCIe slots.
  • The stunning new design features front and rear ledges, so you can easily move your system from location to location.
  • Perfect for OEMs, the Z2 SFF has the same dimensions as last generation and will ship and be supported over a long life.
  • Get multiple high-speed network connections including a second LAN option without needing to purchase and install an additional network interface card (NIC)
  • With optional self-encryption drives, you have confidence knowing that if your storage device falls into the wrong hands, your valuable IP cannot be accessed.

Specifications:


HP Z2 Small Form Factor G4 Workstation Specifications
Operating system Windows 10 Pro for Workstations 64 - HP recommends Windows 10 Pro 1
Windows 10 Home 64
Windows 10 Pro (National Academic only)
Processor Family Intel Pentium Gold processor; Intel Xeon processor (E-2176G, E-2174G, E-2146G, E-2144G, E-2136, E-2126G, E-2124G, E-2104G); 8th Generation Intel Core™ i3 processor; 8th Generation Intel Core™ i5 processor; 8th Generation Intel Core™ i7 processor; 9th Generation Intel Core™ i9 processor; 9th Generation Intel Core™ i7 processor; 9th Generation Intel Core™ i5 processor; 9th Generation Intel Core™ i3 processor
Processors Intel Xeon E-2176G vPro™ (3.7 GHz base frequency, up to 4.7 GHz with Intel Turbo Boost Technology, 12 MB cache, 6 cores)
Intel Xeon E-2104G vPro™ with Intel HD Graphics P630 (3.2 GHz, 8 MB cache, 4 cores)
Intel Pentium Gold G5400 with Intel HD Graphics 610 (3.7 GHz base frequency, 4 MB cache, 2 cores)
Intel Core™ i7 8700 vPro™ with Intel HD Graphics 630 (3.2 GHz base frequency, up to 4.6 GHz with Intel Turbo Boost Technology, 12 MB cache, 6 cores)
Intel Core™ i5 8600 vPro™ with Intel HD Graphics 630 (3.1 GHz base frequency, up to 4.3 GHz with Intel Turbo Boost Technology, 9 MB cache, 6 cores)
Intel Core™ i5 8500 vPro™ with Intel HD Graphics 630 (3 GHz base frequency, up to 4.1 GHz with Intel Turbo Boost Technology, 9 MB cache, 6 cores)
Intel Core™ i3-8100 with Intel HD Graphics 630 (3.6 GHz, 6 MB cache, 4 cores)
Intel Xeon E-2174G vPro™ (3.8 GHz base frequency, up to 4.7 GHz with Intel Turbo Boost Technology, 8 MB cache, 4 cores)
Intel Xeon E-2144G vPro™ (3.6 GHz base frequency, up to 4.5 GHz with Intel Turbo Boost Technology, 8 MB cache, 4 cores)
Intel Xeon E-2136 vPro™ (3.3 GHz base frequency, up to 4.5 GHz with Intel Turbo Boost Technology, 12 MB cache, 6 cores)
Intel Xeon E-2126G vPro™ (3.3 GHz base frequency, up to 4.5 GHz with Intel Turbo Boost Technology, 12 MB cache, 6 cores)
Intel Core™ i3-9100 with Intel UHD Graphics 630 (3.6 GHz base frequency, up to 4.2 GHz with Intel Turbo Boost Technology, 8 MB cache, 4 cores)
Intel Core™ i5-9500 with Intel UHD Graphics 630 (3.0 GHz base frequency, up to 4.4 GHz with Intel Turbo Boost Technology, 9 MB cache, 6 cores)
Intel Core™ i5-9600 with Intel UHD Graphics 630 (3.1 GHz base frequency, up to 4.6 GHz with Intel Turbo Boost Technology, 9 MB cache, 6 cores)
Intel Core™ i7-9700 with Intel UHD Graphics 630 (3.0 GHz base frequency, up to 4.7 GHz with Intel Turbo Boost Technology, 12 MB cache, 8 cores)
Intel Core™ i7-9700K with Intel UHD Graphics 630 (3.6 GHz base frequency, up to 4.9 GHz with Intel Turbo Boost Technology, 12 MB cache, 8 cores)
Intel Core™ i9-9900 with Intel UHD Graphics 630 (3.1 GHz base frequency, up to 5.0 GHz with Intel Turbo Boost Technology, 16 MB cache, 8 cores)
Intel Core™ i9-9900K with Intel UHD Graphics 630 (3.6 GHz base frequency, up to 5.0 GHz with Intel Turbo Boost Technology, 16 MB cache, 8 cores)
Intel Xeon E-2224G (3.4 GHz base frequency, up to 4.6 GHz with Intel Turbo Boost Technology, 8 MB cache, 4 cores), vPro™
Intel Xeon E-2226G (3.4 GHz base frequency, up to 4.7 GHz with Intel Turbo Boost Technology, 12 MB cache, 6 cores), vPro™
Intel Xeon E-2236 (3.4 GHz base frequency, up to 4.8 GHz with Intel Turbo Boost Technology, 12 MB cache, 6 cores), vPro™
Intel Xeon E-2244G (3.8 GHz base frequency, up to 4.8 GHz with Intel Turbo Boost Technology, 8 MB cache, 4 cores), vPro™
Intel Xeon E-2274G (4.0 GHz base frequency, up to 4.9 GHz with Intel Turbo Boost Technology, 8 MB cache, 4 cores), vPro™
Intel Xeon E-2276G (3.8 GHz base frequency, up to 4.9 GHz with Intel Turbo Boost Technology, 12 MB cache, 6 cores), vPro™
Intel Xeon E-2278G (3.4 GHz base frequency, up to 5.0 GHz with Intel Turbo Boost Technology, 16 MB cache, 8 cores), vPro™
Intel Xeon E-2286G (4.0 GHz base frequency, up to 4.9 GHz with Intel Turbo Boost Technology, 12 MB cache, 6 cores), vPro™
Chipset Intel C246
Maximum Memory 128 GB DDR4-2666 ECC SDRAM; 128 GB DDR4-2666 non-ECC SDRAM (Transfer rates up to 2666 MT/s.)
Memory slots 4 DIMM
Drive Controllers Integrated SATA (4 ports 6 Gb/s) with integrated RAID 0, 1, for PCIe SSDs supported. Requires identical hard drives (speeds, capacity, interface).
Internal Storage 500 GB up to 6 TB 7200 rpm SATA
500 GB SATA SED
256 GB up to 2 TB SATA SSD
280 GB up to 480 GB Intel Optane™ SSD 905P
256 GB up to 512 GB SATA SED SSD
1 TB 7200 rpm SATA SSHD
256 GB up to 1 TB HP Z Turbo Drive G2 PCIe NVMe™ SSD
Optical Storage HP Slim Blu-ray Writer; HP Slim DVD-ROM; HP Slim DVD-Writer
Drive Bays (Internal) One 2.5"; One 3.5"; Two M.2 NVME 2280 SSD
Drive Bays (External) One 3.5" HDD
Available Graphics Integrated: Intel UHD Graphics 630; Intel UHD Graphics P630
Entry 3D: NVIDIA Quadro P400 (2 GB GDDR5 dedicated); NVIDIA Quadro P620 (2 GB GDDR5 dedicated); AMD Radeon™ Pro WX 3100 Graphics (4 GB GDDR5 dedicated); NVIDIA Quadro P1000 (4 GB GDDR5 dedicated)
Expansion Slots 2 M.2 PCIe 3 x4; 1 PCIe Gen 3 x16; 2 PCIe 3 x1 (x4 open ended connector); 2 PCIe 3 x4 (x16 connector)
Ports and Connectors Front: 1 headphone/microphone combo; 1 USB 2.0 (charging); 2 USB 3.0; 1 USB 3.1 Gen 2 Type-C™ (charging)
Rear: 1 audio-in; 1 audio-out; 1 DVI-I single link; 1 RJ-45; 2 DisplayPort™ 1.2; 2 USB 2.0; 4 USB 3.0
Internal: 1 USB 3.0; 2 USB 2.0
Optional: Flex I/O
Networking LAN: Integrated Intel I219-LM PCIe GbE; Intel I350-T2 dual-port GbE NIC
WLAN: Intel Dual Band Wireless-AC 9560 802.11a/b/g/n/ (2x2) Wi-Fi and Bluetooth 5 Combo
Audio Conexant CX20632-31Z, 1.5W internal mono speaker
Input Devices HP PS/2 Business Slim Keyboard; HP USB Business Slim Keyboard; HP Wireless Business Slim Keyboard; USB Smart Card (CCID) keyboard; 3D connexion CADMouse; HP SpaceMouse Pro USB 3D; HP USB 1000 dpi Laser Mouse; HP USB Hardened Mouse; HP USB Optical 3-Button Mouse; HP USB Optical Mouse
Power 310 W internal power adapter, up to 90% efficiency, active PFC; 250 W internal power adapter, up to 92% efficiency, active PFC; 400 W internal power adapter, up to 90% efficiency, active PFC
Security HP Business PC Security Lock Kit; HP Keyed Cable Lock Kit; HP Solenoid Hood Lock and Sensor; HP UltraSlim Cable Lock Kit; HP Client Security Suite Gen 4; HP Sure Start Gen 4; HP Sure Run; HP Sure Click; HP BIOSphere Gen4
Software Buy Office; CyberLink Power2Go; CyberLink PowerDVD; HP Client Security Software; HP PC Hardware Diagnostics UEFI; HP Performance Advisor; HP Remote Graphics Software (RGS) 7.1; PDF Complete - Corporate Edition; HP Sure Recover; HP Manageability Integration Kit Gen2
Dimensions (W X D X H) 13.3 x 15 x 3.95 in
33.8 x 38.1 x 10 cm
(Standard desktop orientation.)
Weight Starting at 12.66 lb
Starting at 5.7 kg
(Exact weight depends on configuration.)
Energy Efficiency Compliance ENERGY STAR certified and EPEAT 2019 registered where applicable. EPEAT registration varies by country. See www.epeat.net for registration status by country.
Environmental Low halogen
Compatible Displays All HP Z Displays and HP DreamColor Displays are supported.
Warranty 3 year (3-3-3) limited warranty and service offering includes 3 years of parts, labor and on-site repair. Terms and conditions vary by country. Certain restrictions and exclusions apply.

Image Gallery:

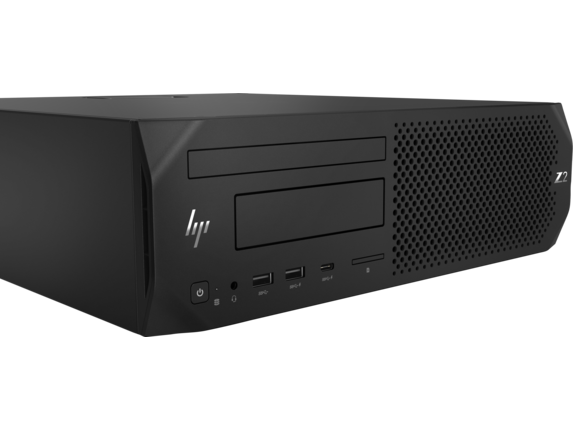

Left Angle View
Rear View

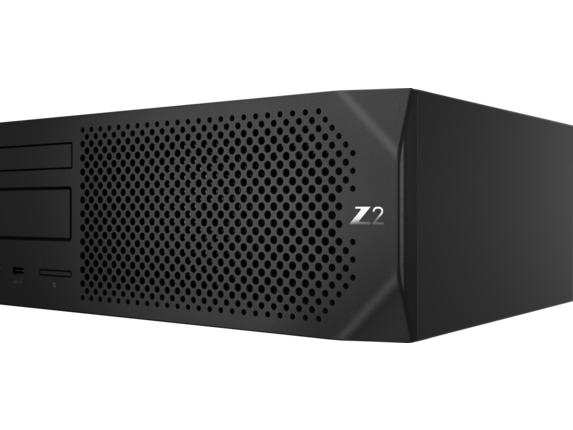

Right Angle View

Documentation:

Download the HP Z2 Small Form Factor G4 Workstation Datasheet (.PDF)
