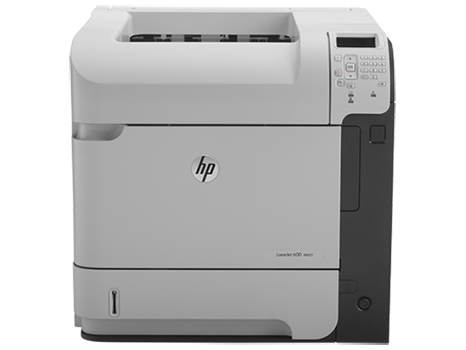

HP LaserJet Enterprise 600 Printer M602n CE991A#BGJ
Heavy-duty reliability and breakthrough speed

Overview:

Ideal for workgroups of 10+ users in large/enterprise business environments that need a fast, reliable printer for high-volume document printing which offers advanced network management, increased paper capacity and security features.

Get heavy-duty reliability and breakthrough speed.

• Boost productivity with fast print speeds up to 50 ppm1 and produce documents on a variety of media.
• Manage workflow directly from the printer via the 4-line colour control panel and get quick prints from a USB flash drive.
• Easily meet high-volume demands with automatic two-sided printing2, up to two 500-sheet paper trays3, a 100-sheet multipurpose tray and capacity of up to 3,600 sheets4.
• Replace toner cartridges easily with simple one-door access and enjoy quiet, clean performance.

Achieve outstanding energy and paper savings.

• Control energy use with HP Auto-On/Auto-Off Technology5 which turns your printer on and off based on network activity. Instant-on Technology speeds warm-up/cool-down times, saving even more power⁶.
• Track usage data in real time and apply custom energy-saving options and printer settings with the HP EcoSMART Console⁷.
• Reduce paper use by up to 50% with automatic two-sided printing².
• Pre-installed Original HP toner cartridges reduce waste. Recycle them for free through HP Planet Partners⁸.

Experience secure printing with minimal intervention.

• Take control of printing practices and enforce security policies, using HP Access Control⁹.
• Command your printing environment and slash costs with HP Web Jetadmin, manage IT resources with the HP Universal Print Driver and reduce environmental impact¹⁰.
• Enhance security on multiple networked devices: expand your network of IP addresses with IPv6, get fast authentication and encryption for sensitive data with IPSec security.
• Effectively manage compliance and security issues across your business.

Extend your print capabilities to keep pace with your growing business.

• Easily update, manage, and expand the capabilities of networked printers using HP FutureSmart Firmware.
• Innovative extensibility simplifies the deployment of customised, HP and third-party workflow and document management solutions.
• Make printing as mobile as you are with HP ePrint – now you can print from virtually anywhere¹¹.
• Get the most out of your investment by adding functionality such as card authentication or new accounting measures using the hardware integration pocket¹².

¹ Measured using ISO/IEC 24734, excludes first set of test documents. For more information, see www.hp.com/go/printerclaims. Exact speed varies depending on the system configuration, software application, driver and document complexity.
² Automatic two-sided printing is only available on the HP LaserJet Enterprise 600 M602dn and M602x printers. The Automatic Two-sided Printing Accessory may be purchased separately for the HP LaserJet Enterprise 600 M602n Printer.
³ Additional 1 x 500-sheet paper tray is only available on the HP LaserJet Enterprise 600 M602x Printer.
⁴ The 1 x 1,500-sheet high-capacity input tray may be purchased separately for the HP LaserJet Enterprise 600 M602 Printer series.
⁵ HP Auto-On/Auto-Off capabilities subject to printer and settings. Actual power usage may vary.
⁶ Compared with products that use traditional fusing.
⁷ Expected availability late 2011. May require a firmware upgrade.
⁸ Programme availability varies. Original HP cartridge return and recycling is currently available in more than 50 countries and territories around the world through the HP Planet Partners programme. For more information, or to request return envelopes and bulk collection boxes, visit www.hp.com/recycle.
⁹ HP Access Control must be purchased separately.
¹⁰ HP Web Jetadmin is free and can be downloaded at www.hp.com/go/webjetadmin. The HP Universal Print Driver is free and can be downloaded at www.hp.com/go/upd. HP EcoSMART Fleet must be purchased separately.
¹¹ Requires an Internet connection to the printer. Feature works with any Internet- and e-mail-capable device. Print times may vary. For a list of supported documents and image types, see www.hp.com/go/eprintcenter. Some HP LaserJet products will require a firmware upgrade.
¹² Solutions deployed through the hardware integration pocket may require additional purchase.

Features:

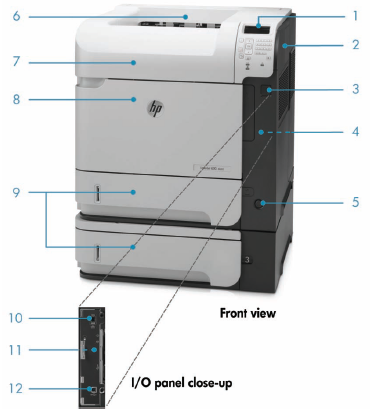

HP LaserJet Enterprise 600 M602x:

1. Intuitive 4-line color display with 10-button keypad
2. Hardware Integration Pocket for solution integration
3. Walkup USB port
4. Built-in automatic two-sided printing
5. Convenient front on/off switch
6. 500-sheet output bin
7. One-door access to install regular or high-capacity toner cartridges
8. 100-sheet multipurpose tray 1 handles heavy custom media up to 53 lb bond
9. Two 500-sheet input trays for a 1,100-sheet total input capacity
10. HP Jetdirect 10/100/1000Base-TX Ethernet embedded print server
11. 512 MB total memory and an 800 MHz processor quickly handle complex print jobs
12. Hi-Speed USB 2.0 port

Series at a glance

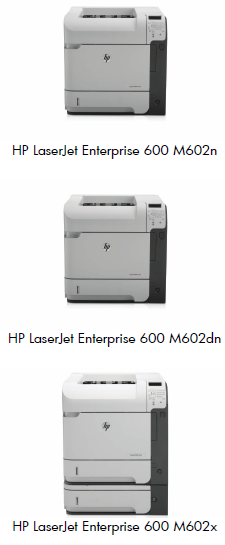

HP LaserJet Enterprise 600 M602n	HP LaserJet Enterprise 600 M602dn	HP LaserJet Enterprise 600 M602x
HP LaserJet Enterprise 600 M602n Printer: print speed of up to 50 ppm black up to 1200 x 1200 dpi effective output quality with HP ProRes 1200 HP FastRes 1200 512 MB memory expandable to 1 GB 800 MHz processor 1 Gigabit Ethernet 1 Hi-Speed USB 2.0 2 External Host USB (1 walk-up, 1 external accessible) 2 internal Host USB 2.0-like ports (for 3rd party connection) 1 Hi-Speed USB 2.0 Hardware Integration Pocket (for 3rd party connection) 100-sheet multipurpose tray 500-sheet input tray	HP LaserJet Enterprise 600 M602dn Printer: as base model with automatic two-sided printing	HP LaserJet Enterprise 600 M602x Printer: as base model with automatic two-sided printing 1 x 500-sheet paper tray

Specifications:

HP LaserJet Enterprise 600 Printer M602x
Print technology	Laser
Print speed	First page out: As fast as 8.5 sec A4: Up to 50 ppm First page out time is measured from Tray 2. Exact speed varies depending on the system configuration, software application, driver and document complexity. Measured using ISO/IEC 24734, excludes first set of test documents. For more information see http://www.hp.com/go/printerclaims. Exact speed varies depending on the system configuration, software application, driver, and document complexity.
Processor	800 MHz, ARM Cortex™-A8 superscalar processor
Memory	512 MB, Expandable to 1 GB through one 144-pin DDR2 DIMM slot, Hard disk capacity: None
Print	Quality	HP ProRes 1200, HP FastRes 1200, HP REt, 600 dpi, 300 dpi
	Resolution	Up to 1200 x 1200 dpi
	Printer languages	HP PCL 6, HP PCL 5c (HP PCL 5c driver available from the Web only), HP Postscript Level 3 emulation, native PDF printing (v 1.4)
	Typefaces/fonts	105 internal TrueType fonts scalable in HP PCL, 92 internal scalable fonts in HP Postscript Level 3 emulation (Euro symbol built-in); 1 internal Unicode Fonts (Andale Mono WorldType); 2 Internal Windows Vista® 8 Fonts (Calibri, Cambria); additional font solutions available via third-party flash memory cards; HP LaserJet Fonts and IPDS Emulation available at http://www.hp.com/go/laserjetfonts
	Duty cycle (monthly, A4)	Up to 225000 pages
	Recommended monthly page volume	3000 to 15000
	Print margins	Top: 6 mm, Left: 5 mm, Right: 5 mm, Bottom: 6 mm
Media handling	Input	Capacity	Weight	Size
	Tray 1	sheets: 100; transparencies: 50; envelopes: 10	60 to 200 g/m²	A4; A5; A6; B5 (JIS); B6 (JIS); RA4; 10 x 15 cm; envelope (DL ISO, C5 ISO, C6 ISO, B5 ISO); custom 76 x 127 to 216 x 356 mm
	Tray 2	sheets: 500	60 to 120 g/m²	A4; A5; RA4; B5 (JIS); custom 148 x 210 to 216 x 356 mm
	Tray 3		60 to 120 g/m²
	Duplex printing:	M602n: Automatic (optional); M602dn: Automatic (standard); M602x: Automatic (standard);	M602n: 60 to 120 g/m² (with optional duplexer); M602dn: 60 to 120 g/m²; M602x: 60 to 120 g/m²;	M602n: A4; A5; B5 (JIS); executive (JIS); 16K; custom 148 x 210 to 216 x 356 mm (with optional duplexer); M602dn: A4; A5; B5 (JIS); M602x: A4; A5; B5 (JIS);
	Output:	Sheets: Up to 600 sheets (500 in the face down bin, 100 in rear face up door). Envelopes: Up to 10 envelopes. Transparencies: Up to 600 sheets
Media types	Paper (bond, colour, letterhead, plain, preprinted, prepunched, recycled, rough, light), envelopes, labels, cardstock, transparencies, shelf edge labels, user-defined
Memory card compatibility	USB Flash drive
Interface and connectivity	1 Hi-Speed USB 2.0; 1 Gigabit Ethernet; 2 External Host USB (1 walk-up and 1 external accessible); 2 internal Host USB 2.0-like ports (for 3rd party connection); 1 Hi-Speed USB 2.0 HIP (for 3rd party connection)
Network protocols	IPv4/IPv6: Apple Bonjour Compatible (Mac OS v10.2.4 or higher), SNMPv1/v2c/v3, HTTP, HTTPS, FTP, TFTP, Port 9100, LPD, WS Discovery, IPP, Secure-IPP, IPsec/Firewall; IPv6: DHCPv6, MLDv1, ICMPv6; IPv4: Auto-IP, SLP, Telnet, IGMPv2, BOOTP/DHCP, WINS, IP Direct Mode, WS Print; Other: NetWare NDS, Bindery, NDPS, ePrint
Operating systems compatibility	Microsoft® Windows® 7; Windows Vista®; Windows XP® (SP2+), Server 2003 (SP1+), Server 2008 (all 32-bit and 64-bit), Server 2008 R2 (64-bit); Mac OS X v10.5, v10.6; Citrix® and Windows® Terminal Services (see System Administrator’s Guide at http://www.hp.com/go/upd, Documentation tab for latest support); Novell® (see http://www.novell.com/iprint for latest support); Linux (see http://www.hplip.net); UNIX (see http://www.hp.com/go/unix, http://www.hp.com/go/unixmodelscripts, and http://www.hp.com/go/jetdirectunix_software); SAP device types (see http://www.hp.com/go/sap/drivers and www.hp.com/go/sap/print) Optional: Most recent printer drivers and software for all supported operating systems available at http://www.hp.com/support/hpljm602 series; if no access to the Internet, see support flyer that came in printer box
Minimum system requirements	Microsoft® Windows® 7; Windows Vista®; Windows XP® (SP2 or higher), Server 2003 (SP1 or higher), Server 2008, Server 2008 R2: 200 MB available hard disk space; operating system compatible hardware system requirements, see http://www.microsoft.com, Mac OS X v10.5, v10.6; 150 MB available hard disk space; operating system compatible hardware system requirements, see: http://www.apple.com
Software	Windows® Installer, HP PCL 6 discrete driver; Mac Installer, Postscript driver
Control panel	2.29 x 5.33 cm 4-line colour LCD display, 3 LED lights (Attention, Data, Ready), buttons (Information, Stop/Cancel, Return, Home, Folder, Left Arrow), No numeric keys
Printer management	HP Web Jetadmin; HP SureSupply; HP Utility (Mac)
Security management	Management security: SNMPv3, SSL/TLS, 802.1X authentication (EAP- PEAP, EAP-TLS), IPP over TLS, IPsec/Firewall with Certificate, Pre-Shared Key Authentication, and Kerberos Authentication; Support for WJA-10 IPsec Configuration using IPsec Plug-in
Power	Built-in power supply; Requirements: Input voltage: 100 to 127 VAC (+/- 10%), 50/60 Hz (+/- 3 Hz); 220 to 240 VAC (+/- 10%), 50/60 Hz (+/- 3 Hz). Consumption: 820 watts (printing), 21 watts (standby), 5.5 watts (sleep), 1.0 watt (auto-off), 0.3 watts (manual-off); Typical Electricity Consumption (TEC): 3.763 kWh/Week
Dimensions (w x d x h)	Out of package: M602n: 415 x 428 x 398 mm; M602dn: 415 x 508 x 398 mm; M602x: 415 x 508 x 513 mm; Packaged: M602n: 588 x 540 x 499 mm; M602dn: 588 x 633 x 499 mm; M602x: 588 x 633 x 749 mm;
Weight	Out of package: M602n: 23.7 kg; M602dn: 26.3 kg; M602x: 32.8 kg; Packaged: M602n: 27.5 kg; M602dn: 30.1 kg; M602x: 38.9 kg;
Operating environment	Operating temperature: 15 to 32ºC. Recommended operating temperature: 15 to 32ºC. Operating humidity: 10 to 80% RH. Recommended operating humidity: 10 to 80% RH. Storage temperature: -30 to 60ºC. Storage humidity: 10 to 90% RH. Noise level per ISO 9296: Sound power: LwAd7.0 B(A)
Acoustics	Acoustic Power Emissions: 7.0 B(A) Acoustic Pressure Emissions: 56 dB(A)
Product certifications	Safety certifications: IEC 60950-1 (International); EN 60950-1 +A11 (EU); IEC 60825-1; GS License (Europe); EN 60825-1 (Class 1 Laser/LED Device); Low Voltage Directive 2006/95/EC with CE Marking (Europe); other safety approvals as required by individual countries EMC certifications: CISPR 22: 2005 EN 55022: 2006 +A1 Class B, EN 61000-3-2: 2006, EN 61000-3-3: 2008, EN 55024: 1998 +A1+A2, FCC Title 47 CFR, GB9254-2008, EMC Directive 2004/108/EC with CE Marking (Europe), other EMC approvals as required by individual countries
Warranty	One-year, return to HP authorised service centre, limited warranty. Warranty and support options vary by product, country and local legal requirements.

Documentation:

Download the HP LaserJet Enterprise 600 Printer M602n Datasheet (.PDF)
