HP EliteDesk 705 G4 Microtower PC
Balanced performance and expandability

HP EliteDesk 705 G4 Microtower PC

HP Business Desktops
HP EliteDesk 705 G4 Microtower PC
HP EliteDesk 705 G4 Microtower PC - A109700 8GB 500GB W10P 64BIT
#4HY45UT#ABA
Our Price: $632.00
HP EliteDesk 705 G4 Microtower PC - A109700 8GB 256GB SSD W10P 64BIT
#4HY47UT#ABA
Our Price: $733.00
HP EliteDesk 705 G4 Microtower PC - A2400G 16GB 512GB SSD W10P 64BIT
#4HY66UT#ABA
Our Price: $915.00



Overview:

Powered for the enterprise, the HP EliteDesk 705 MT is one of our most secure PCs that delivers impressive value with the performance and expandability required by today’s high-productivity workforce in a new space-saving and stylish design.

Balanced performance and expandability

  • Windows 10 Pro 64
  • HP Sure Start Gen4

Features:

Pure performance and enhanced visual experience

Enjoy the powerful performance of the latest 65W AMD Ryzen™ 3 PRO and Ryzen™ 5 PRO Processors or amplify performance with the optional 95W AMD Ryzen™ 7 PRO Processor with up to 8 cores, 16 threads , and high-end discrete graphics for viewing VR content.

Expansion that extends your investment

Configure the HP EliteDesk 705 MT expandability with four bays and four slots including one three-quarter length double-wide slot for high-end graphics. Plus, two additional M.2 slots, and plenty of configurable ports.

Strong security, powerful manageability

Get powerful protection and simplified management. HP Sure Start Gen4 protects against BIOS attacks while the HP Manageability Integration Kit allows you to easily manage devices through Microsoft System Center Configuration Manager.

Reliability for the long haul

This work-ready PC is designed for a long life-cycle with up to 18-months of platform stability. It passed 120,000 hours of testing in the HP Total Test Process , is designed to undergo MIL-STD 810G testing , and has an optional removable dust filter.

Featuring

  • Power through your day with Windows 10 Pro with built-in security, collaboration, and connectivity.
  • Protect the firmware that antivirus can’t reach! The hardware-enforced self-healing protection offered by HP Sure Start Gen4 automatically recovers the BIOS from malware, rootkits, or corruption.
  • Keep your critical processes running, even if malware tries to shut them down. HP Sure Run extends hardware enforced self-healing protection into the operating system to guard against malicious attacks on applications and processes.
  • Help protect your PC from websites, attachments, malware, ransomware, and viruses with hardware-enforced security from HP Sure Click.
  • Quickly and securely restore PCs to the latest image using a network connection with optional HP Sure Recover.
  • ITDMs can quickly help create, improve, and secure custom Windows images with HP Image Assistant Gen3.
  • The HP Manageability Integration Kit helps speed up image creation and management of hardware, BIOS, and security through Microsoft System Center Configuration Manager.
  • Keep data out of reach and defend against theft, attacks, and unauthorized users with HP Client Security Manager Gen4.

Specifications:


HP EliteDesk 705 G4 Microtower PC Specifications
Operating system Windows 10 Pro 64 – HP recommends Windows 10 Pro.
Windows 10 Pro 64 (National Academic only)
Windows 10 Home 64
FreeDOS 2.0
Processor Family 7th Generation AMD A10 APU processor (A10-9700); 7th Generation AMD A6 APU processor (A6-9500); AMD Ryzen™ 3 PRO processor; AMD Ryzen™ 5 PRO processor; AMD Ryzen™ 7 PRO processor; 7th Generation AMD A8 APU processor (A8-9600)
Processors AMD Ryzen™ 5 PRO 2400G Quad-Core with Radeon™ Vega 11 Graphics (3.6 GHz base clock, up to 3.9 GHz max boost clock, 384 KB L1 cache, 2 MB L2 cache, 4 MB L3 cache);
AMD Ryzen™ 3 PRO 2200G Quad-Core with Radeon™ Vega 8 Graphics (3.5 GHz base clock, up to 3.7 GHz max boost clock, 348 KB L1 cache, 2 MB L2 cache, 4 MB L3 cache);
AMD Ryzen™ 7 PRO 2700 Eight-Core (3.2 GHz base clock, up to 4.1 GHz max boost clock, 768 KB L1 cache, 4 MB L2 cache, 16 MB L3 cache);
AMD Ryzen™ 7 PRO 2700X Eight-Core (3.6 GHz base clock, up to 4.1 GHz max boost clock, 768 KB L1 cache, 4 MB L2 cache, 16 MB L3 cache);
AMD Ryzen™ 5 PRO 2600 Six-Core (3.4 GHz base clock, up to 3.9 GHz max boost clock, 576 KB L1 cache, 3 MB L2 cache, 16 MB L3 cache);
AMD PRO A8-9600 APU Quad-Core with Radeon™ R7 Graphics (3.1 GHz base clock, up to 3.4 GHz max boost clock, 2 MB L2 cache);
AMD PRO A6-9500 APU Dual-Core with Radeon™ R5 Graphics (3.5 GHz base clock, up to 3.8 GHz max boost clock, 1 MB L2 cache);
AMD PRO A10-9700 APU Quad-Core with Radeon™ R7 Graphics (3.5 GHz base clock, up to 3.8 GHz max boost clock, 2 MB L2 cache)
Chipset AMD B350 FCH
Form factor Microtower
Maximum Memory 64 GB DDR4-2666 SDRAM
Transfer rates up to 2666 MT/s
Memory slots 4 DIMM
Internal Storage up to 2 TB 5400 rpm SATA
up to 500 GB SATA SED
up to 500 GB 7200 rpm SATA FIPS SED
128 GB up to 512 GB SATA SSD
256 GB up to 512 GB SATA SED Opal 2 SSD
256 GB up to 512 GB SATA FIPS SSD
128 GB up to 512 GB PCIe NVMe™ SSD
128 GB up to 1 TB PCIe NVMe™ TLC M.2 SSD
256 GB up to 512 GB PCIe NVMe™ SED Opal 2 TLC M.2 SSD
Additional storage 5-in-1 SD card reader
Optical drive HP 9.5 mm Slim DVD-Writer
Available Graphics Integrated: AMD Radeon™ R5 Graphics; AMD Radeon™ R7 Graphics; AMD Radeon™ Vega 8 Graphics; AMD Radeon™ RX Vega 11 Graphics
Discrete: AMD Radeon™ R7 430 Graphics (2 GB GDDR5 dedicated); AMD Radeon™ RX 550 Graphics (4 GB GDDR5 dedicated); AMD Radeon™ RX 580 Graphics (4 GB GDDR5 dedicated); AMD Radeon™ RX 580 Graphics (8 GB GDDR5 dedicated)
Audio Conexant CX20632 codec, universal audio jack for headset front port, audio line in and out rear ports (3.5 mm), multi-streaming capable
Expansion Slots 1 M.2 2230; 1 M.2 2230/2280; 1 PCIe x16; 3 PCIe x1 (1 M.2 slot for WLAN and 1 M.2 2230/2280 slot for storage.)
Ports and Connectors Front: 1 headset connector; 1 USB 2.0; 1 USB 2.0 (fast charging); 1 USB Type-C™ (charging); 2 USB 3.1 Gen 1
Rear: 1 audio-in; 1 audio-out; 1 power connector; 1 RJ-45; 2 DisplayPort™ 1.2; 2 USB 3.1 Gen 1; 4 USB 2.0
Optional: 1 DisplayPort™ 1.2; 1 HDMI 2.0; 1 serial; 1 USB 3.1 Type-C™ Gen 1 (DisplayPort™); 1 VGA
Input devices HP Conferencing Keyboard; HP PS/2 Business Slim Keyboard; HP USB and PS/2 Washable Keyboard; HP USB Business Slim Keyboard; HP USB Keyboard; HP USB Smart Card (CCID) Keyboard; HP Wireless Business Slim Keyboard and Mouse Combo; PS/2 Business Slim Keyboard; HP Wireless Collaboration Keyboard ; HP PS/2 Mouse; HP USB 1000 dpi Laser Mouse; HP USB and PS/2 Washable Mouse; HP USB Hardened Mouse; HP USB Optical Mouse; USB Antimicrobial Mouse; HP USB Premium Mouse
Communications LAN: Realtek RTL8111EPH GbE;
WLAN: Intel Dual Band Wireless-AC 9260 802.11ac (2x2) and Bluetooth 5 M.2, non-vPro™
Drive Bays 1 slim ODD; One 5.25" ODD; One 3.5" HDD; Two 2.5" HDD
Environmental Operating temperature: 10 to 35°C; Operating humidity: 10 to 90% RH
Available Software Absolute Persistence module; HP Hotkey Support; HP Noise Cancellation Software; HP Recovery Manager; HP Secure Erase; HP Support Assistant; Native Miracast Support; HP Wireless Wakeup; Buy Office (sold separately); HP LAN-Wireless Protection; HP Sure Recover; Windows Defender; HP JumpStarts
Security management DriveLock; Hood sensor; HP BIOSphere; HP Credential Manager; HP Device Access Manager; HP Password Manager; HP Power On Authentication; HP Security Manager; HP Spare Key; Power-on password (via BIOS); RAID configurations; SATA port disablement (via BIOS); Serial enable/disable (viaBIOS); Setup password (via BIOS); Support for chassis padlocks and cable lock devices; USB enable/disable (via BIOS); Master Boot Record Security; HP Client Security Suite Gen 4; HP Sure Start Gen 4; Pre-boot Authentication; HP Sure Run; Trusted Platform Module TPM 2.0 Embedded Security Chip shipped with Windows 10 (Common Criteria EAL4+ Certified)(FIPS 140-2 Level 2 Certified)
Management features HP BIOS Config Utility (download); HP Client Catalog (download); HP Driver Packs (download); HP System Software Manager (download); Update BIOS via Cloud or Network (BIOS feature); Ivanti Management Suite; HP Management Integration Kit for Microsoft System Center Configuration Management Gen 2
Power 250 W internal power supply, up to 92% efficiency, active PFC; 400 W internal power supply, up to 92% efficiency, active PFC
Dimensions (W X D X H) 6.69 x 10.79 x 13.3 in
17 x 27.4 x 33.8 cm
Weight 15.74 lb 7.14 kg (Exact weight depends on configuration.)
Energy efficiency compliance ENERGY STAR certified; EPEAT Gold
Environmental specifications Low halogen
Warranty 3 year (3-3-3) limited warranty and service offering includes 3 years of parts, labor and on-site repair. Terms and conditions vary by country. Certain restrictions and exclusions apply.

Image Gallery:

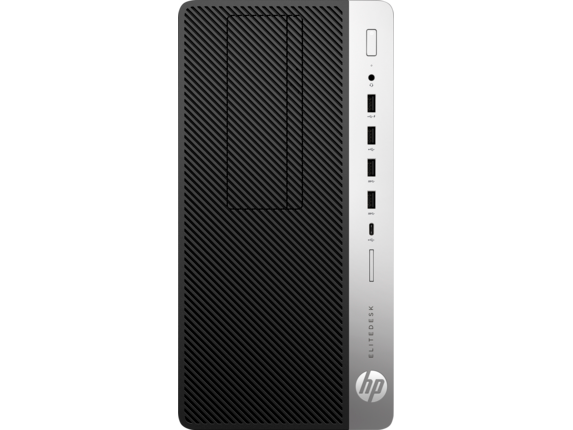

Front View

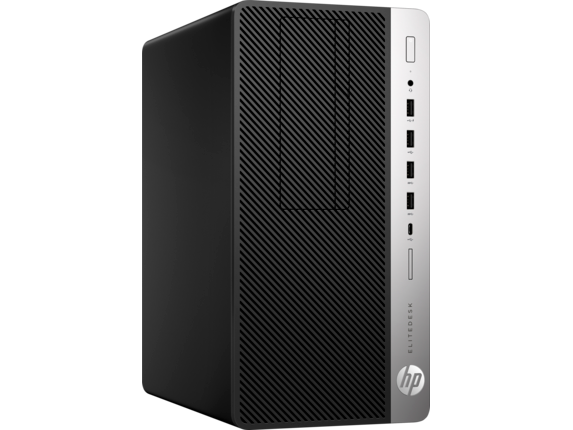

Left Angle View

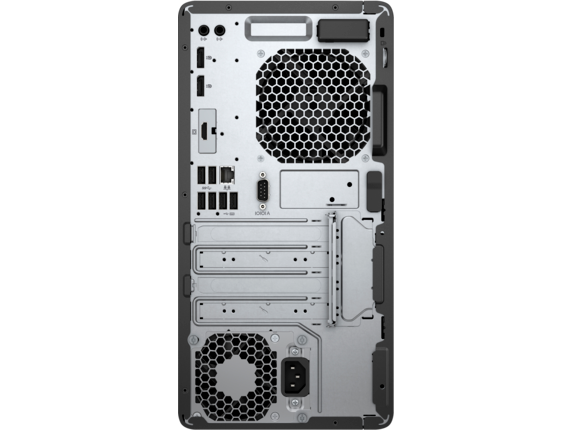

Rear View

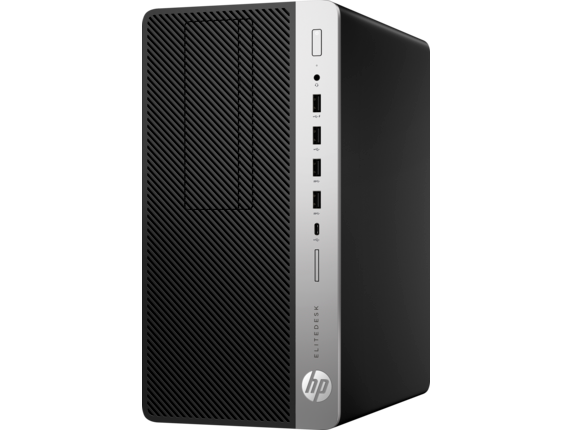

Right Angle View

Documentation:

Download the HP EliteDesk 705 G4 Microtower PC Datasheet (.PDF)
