HP EliteDesk 705 G4 Workstation Edition
HP's most affordable professional certified desktop

HP EliteDesk 705 G4 Workstation Edition

HP Business Desktops
HP EliteDesk 705 G4 Workstation
HP EliteDesk 705 G4 Workstation Systems Edition - MT R5 2600 1TB 8GB W10H 64BIT
#5NC05UT#ABA
Our Price: $1,058.00
HP EliteDesk 705 G4 Workstation Systems Edition - MT R7 A2700X 16GB 512GB SSD W10P
#5NC10UT#ABA
Our Price: $1,214.00
HP EliteDesk 705 G4 Workstation Systems Edition - MT R7 A2700X 16GB 512GB SSD W10P
#5NC12UT#ABA
Our Price: $1,318.00
HP EliteDesk 705 G4 Workstation Systems Edition - MT R7 A2700X 16GB 512GB SSD W10P
#5NF14UT#ABA
Our Price: $1,328.00
HP EliteDesk 705 G4 Workstation Systems Edition - MT R7 A2700X 16GB 512GB SSD W10P
#5NC07UT#ABA
Our Price: $1,333.00



Overview:

Pro-grade performance is within reach with a cost-effective desktop certified for professional software. Equipped to handle multiple tasks simultaneously, you can achieve high levels of productivity.

HP's most affordable professional certified desktop

  • Windows 10 Pro 64
  • AMD Ryzen™ 7 PRO processor
  • 16 GB memory; 512 GB SSD storage
  • AMD Radeon™ Pro WX 3100 Graphics (4 GB GDDR5 dedicated) [11,31,32]
  • 1 M.2 2230; 1 M.2 2230/2280; 1 PCIe x16; 3 PCIe x1

Features:

Multitasking performance

Don’t let your PC be a productivity bottleneck. Get more done, faster, when working in multiple applications. Even work on 3D designs while other tasks run simultaneously in the background.

Software certified

Work with confidence knowing your desktop is certified for your most demanding applications. We’ve worked closely with leading software providers like Autodesk and SolidWorks to help ensure seamless and reliable performance at every stage of your technical workflow.

Advanced security. Easy manageability.

Get powerful protection from evolving malware threats with self-healing, hardware-enforced security solutions like HP Sure Start Gen4 which protects against BIOS attacks. Plus, easily manage multiple devices with the HP Manageability Integration Kit Gen2

Featuring

  • Be productive in any situation. Windows 10 Pro and powerful security, collaboration, and connectivity features from HP help you power through your day.
  • Up to 8 cores and 16 threads of processing power for responsive performance on offline rendering and 3D modeling in CAD applications, and for multitasking on business productivity applications.
  • Create complex 2D designs and 3D models with optional certified NVIDIA Quadro P1000 or AMD Radeon Pro WX 3100 graphics power.
  • Get brilliant performance for breakthrough VR experiences
  • Customize with flexible I/O ports with your choice of VGA, DisplayPort™, HDMI or USB-Type C™ with DisplayPort.
  • Protect the firmware that antivirus can’t reach! The hardware-enforced self-healing protection offered by HP Sure Start Gen4 automatically recovers the BIOS from malware, rootkits, or corruption.
  • Help protect your PC from websites, read-only Microsoft® Office and PDF attachments, malware, ransomware, and viruses with hardware-enforced security.
  • Keep your critical applications and processes running even if malware tries to shut them down with self-healing protection with HP Sure Run.
  • Quickly and securely restore your PC to the latest image using only a network connection.
  • Speed up image creation and management of hardware, BIOS, and security through Microsoft System Center Configuration Manager.

Specifications:


HP EliteDesk 705 G4 Workstation Edition Specifications
Operating system Windows 10 Pro 64 – HP recommends Windows 10 Pro.
Windows 10 Home Single Language 64
Windows 10 Home 64
FreeDOS 2.0
Processor Family 7th Generation AMD A10 APU processor (A10-9700); 7th Generation AMD A6 APU processor (A6-9500); AMD Ryzen 3 PRO processor; AMD Ryzen 5 PRO processor; 7th Generation AMD A8 APU processor (A8-9600)
Processors AMD PRO A10-9700 APU with Radeon™ R7 Graphics (3.5 GHz base frequency, up to 3.8 GHz burst frequency, 2 MB cache, 4 cores)
AMD PRO A6-9500 APU with Radeon™ R5 Graphics (3.5 GHz base frequency, up to 3.8 GHz burst frequency, 1 MB cache, 2 cores)
AMD PRO A8-9600 APU with Radeon™ R7 Graphics (3.1 GHz base frequency, up to 3.4 GHz burst frequency, 2 MB cache, 4 cores)
AMD Ryzen™ 5 Pro 2600 Six-Core (3.4 GHz base frequency, up to 3.9 GHz burst frequency, 576 KB L1 cache, 3 MB L2 cache, 16 MB L3 cache)
AMD Ryzen™ 7 Pro 2700 Eight-Core (3.2 GHz base frequency, up to 4.1 GHz burst frequency, 768 KB L1 cache, 4 MB L2 cache, 16 MB L3 cache)
AMD Ryzen™ 7 Pro 2700X Eight-Core (3.7 GHz base frequency, up to 4.3 GHz burst frequency, 768 KB L1 cache, 4 MB L2 cache, 16 MB cache)
AMD Ryzen™ 3 PRO 2200G APU with AMD Radeon™ Vega 8 Graphics Quad-Core (3.5 GHz base frequency, up to 3.7 GHz burst frequency, 6 MB cache)
AMD Ryzen™ 5 PRO 2400G APU with AMD Radeon™ Vega 11 Quad-Core Graphics (3.6 GHz base frequency, up to 3.9 GHz burst frequency, 6 MB cache)
Chipset AMD B350 FCH
Maximum Memory 64 GB DDR4-2666 SDRAM (Transfer rates up to 2666 MT/s.)
Memory slots 4 DIMM
Internal Storage 500 GB up to 2 TB 7200 rpm SATA
500 GB SATA SED
500 GB 7200 rpm SATA FIPS SED
500 GB up to 2 TB 5400 rpm SATA SSHD
128 GB up to 512 GB SATA SSD
256 GB up to 512 GB SATA SED Opal 2 SSD
256 GB up to 512 GB SATA FIPS SSD
128 GB up to 512 GB PCIe NVMe SSD
128 GB up to 1 TB PCIe NVMe TLC M.2 SSD
256 GB up to 512 GB PCIe NVMe SED Opal 2 TLC M.2 SSD
Optical drive HP 9.5 mm Slim DVD-Writer
Available Graphics Integrated: AMD Radeon™ R5 Graphics; AMD Radeon™ R7 Graphics; AMD Radeon™ Vega 8 Graphics; AMD Radeon™ RX Vega 11 Graphics
Discrete: AMD Radeon™ Pro WX 3100 Graphics (4 GB GDDR5 dedicated); NVIDIA Quadro P1000 (4 GB GDDR5 dedicated); NVIDIA Quadro P400 (2 GB GDDR5 dedicated); NVIDIA GeForce GTX 1060 (3 GB GDDR5 dedicated); AMD Radeon™ RX 580 Graphics (4 GB GDDR5 dedicated); AMD Radeon™ RX 550 Graphics (4 GB GDDR5 dedicated); AMD Radeon™ RX 460 Graphics (2 GB GDDR5 dedicated); AMD Radeon™ R7 430 Graphics (2 GB GDDR5 dedicated)
Audio Conexant universal audio jack, headset and headphone front ports (3.5 mm), multi-streaming capable
Networking LAN: Realtek RTL8111EPH GbE
WLAN: Realtek 802.11a/b/g/n/ac (2x2) and Bluetooth 4.2 Combo; Realtek 802.11a/b/g/n/ac (1x1) and Bluetooth 4.2 Combo; Intel Dual Band Wireless-AC 9260 802.11ac (2x2) and Bluetooth 5 M.2, non-vPro
Expansion Slots 1 M.2 2230; 1 M.2 2230/2280; 1 PCIe x16; 3 PCIe x1 (Configurable 1 M.2 slot for WLAN and 1 M.2 2230/2280 slot for storage.)
Ports and Connectors Front: 1 headset connector; 1 USB 2.0; 2 USB 3.1 Gen 1; 1 USB 2.0 (fast charging); 1 USB Type-C™ (charging)
Rear: 1 audio-in; 1 audio-out; 1 power connector; 1 RJ-45; 2 DisplayPort™ 1.2; 4 USB 2.0; 2 USB 3.1 Gen 122
Optional: 1 DisplayPort™ 1.2; 1 HDMI 2.0; 1 serial; 1 VGA; 1 USB 3.1 Type-C™
Pointing device HP USB Optical Mouse
Keyboard HP USB Business Slim Keyboard
Dimensions (W X D X H) 6.69 x 10.79 x 13.3 in
Weight Starting at 15.74 lb
Warranty 3 year (3-3-3) limited warranty and service offering includes 3 years of parts, labor and on-site repair. Terms and conditions vary by country. Certain restrictions and exclusions apply.

Image Gallery:

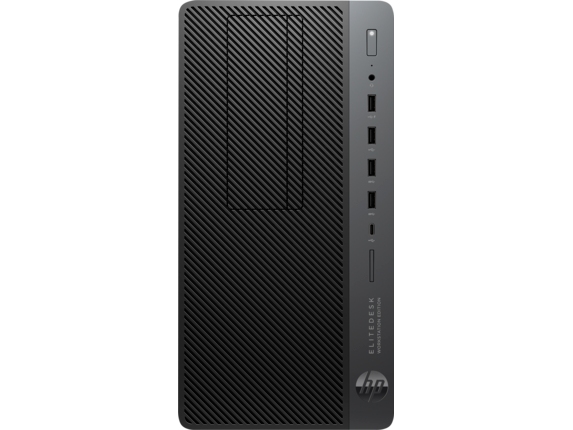

Front View

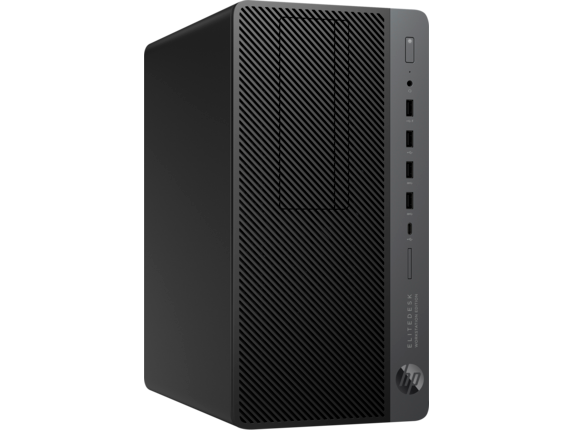

Left Angle View

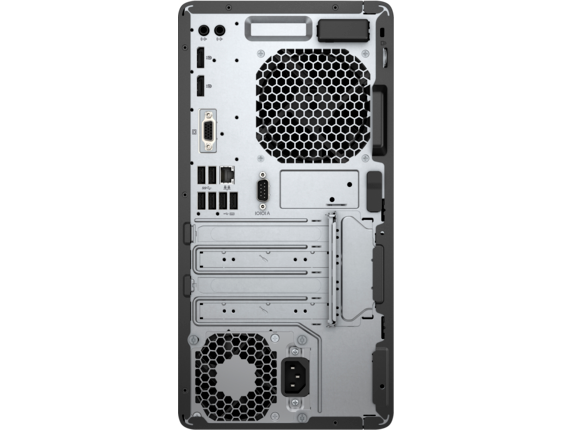

Rear View

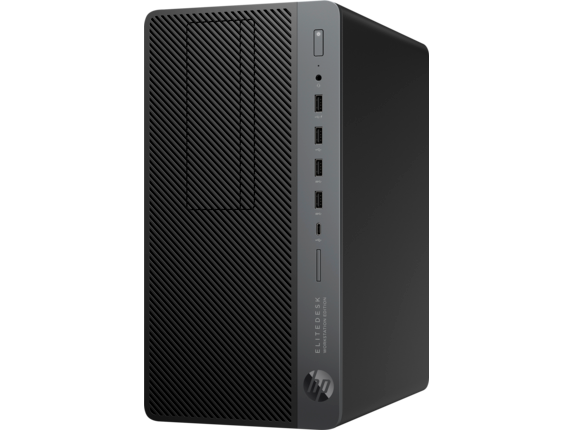

Right Angle View

Documentation:

Download the HP EliteDesk 705 G4 Workstation Edition Datasheet (.PDF)
