HP RP5 Retail System Model 5810
An all-around high-performer that stands up to the rigors of a retail environment

HP Retail System rp5810

HP Business Desktops
HP RP5 Retail System Model 5810
HP RP5 Retail System Model 5810 - POS G3420 4GB, 500GB DVDRW W10P 64BIT
#Z2G66UT#ABA
Our Price: $883.00
HP RP5 Retail System Model 5810 - POS I3-4150, 3.5G 4GB 500GB DVDRWW10P 64BIT
#Z2G67UT#ABA
Our Price: $886.00
HP RP5 Retail System Model 5810 - POS I5-4570S, 4GB 500GB DVDRW W10P 64BIT
#Z2G68UT#ABA
Our Price: $1,017.00
HP RP5 Retail System Model 5810 - POS I3-4150, 3.5G 4GB 500GB DVDRW W10P 64BIT
#Z2G69UT#ABA
Our Price: $1,053.00
HP RP5 Retail System Model 5810 - POS I7- 4770S, 4GB 500GB DVDRW W10P 64BIT
#Z2G70UT#ABA
Our Price: $1,160.00



Overview:

Get the flexibility and expandability to control everything from the store floor to the back office with the HP RP5 Retail System, Model 5810, an all-around high-performer that stands up to the rigors of a retail environment so you can focus on making sales.

  • UEFI BIOS developed and engineered by HP for better security, manageability and software image stability
  • Intel Q87 Express chipset supporting Intel 4th generation Intel ® Core™ processors, featuring Intel HD Graphics and vPro Technology (available with select processors)
  • Intel I217LM GbE integrated network connection
  • DDR3L Synchronous Dynamic Random Access Memory (SDRAM)
  • Integrated dual independent monitor support via VGA and digital DisplayPort v1.2 interfaces

Features:

Powered for performance

Excel in even the most demanding environments with your choice of operating system, 4th generation Intel Core™ processors, and storage to help you take on every retail challenge.

Get all the storage space you need with your choice of HDDs up to 2 TB, SSDs up to 256 GB, and three drive bays for expanding as your business grows.

Customize your perfect fit

Tailor the system to your specific needs with legacy and evolving ports that support a wide range of retail peripherals, and add-ons that offer true flexibility.

Start with an HP RP5 Retail System and build the best retail solution for your business with inputs that support a wide range of peripherals from cash drawers and barcode scanners to displays.

Future-proof your business with a broad selection of ports, including serial, parallel, and up to 14 USB. VGA and DisplayPort ports, with an optional second DisplayPort card, support up to three independent operator or customer-facing displays.

Management and security made easy

POS doesn’t need to be complicated. Enjoy simple, low-cost management with built-in features that help ensure the security of your customer data and terminals.

Control more and spend less with Intel vPro™ AMT and client management software from HP and LANDesk.

Trust your hardware.

In the demanding world of retail, you can’t afford to slow down. Retail-hardened durability and an oversized cooling system help ensure you don’t miss a beat.

Specifications:


HP RP5 Retail System Model 5810 Specifications
Operating system Windows 10 Pro 64-bit
Windows 10 IoT Enterprise Pro Retail 64-bit
Windows 8.1 Pro 64-bit
Windows 7 Professional 64 (available through downgrade rights from Windows 10 Pro)
Windows 7 Professional 32 (available through downgrade rights from Windows 10 Pro)
Windows Embedded POSReady 7 32-bit
Windows Embedded POSReady 7 64-bit
Processors Intel Q87 Express
Memory slots 4 DIMM
Internal Drive Bays Two 3.5"
External Drive Bays One 5.25"
Optical Drive SATA DVD-ROM
Graphics (Integrated) Intel HD Graphics;
Intel HD Graphics 4400;
Intel HD Graphics 4600;
NVIDIA NVS 315 (1 GB);
NVIDIA NVS 510 (2 GB)
I/O Port Location Back
Ports 5 USB 2.0; 2 USB 3.0; 1 24V powered USB; 2 powered serial (5V/12V); 1 PS/2 keyboard; 1 PS/2 mouse; 1 VGA; 1 DisplayPort 1.2; 1 audio in; 1 audio out; 1 RJ-45; 1 RJ-12 (cash drawer)
Ports Note Additional optional ports include 1 parallel, 1 eSATA, up to 6 12V USB, additional DisplayPort, and 2 RS-232 via serial card
Expansion slots 1 half-height PCIe x16 (x16); 1 half-height PCIe x16 (x4); 2 full-height PCI or PCIe (x1)
Audio HD audio with Realtek ALC261 codec (all ports are stereo). Line out and line in rear ports (3.5 mm) and internal speaker
Network Interface ntegrated Intel I217LM GbE; Intel I210-T1 PCIe GbE (optional);
Intel 7260 802.11 a/b/g/n wireless PCIe (optional);
Broadcom NetXtreme GbE PCIe (optional)
Security Management TPM 1.2 Embedded Security Chip integrated with Broadcom NIC (TPM module disabled where use is restricted by law); HP ProtectTools Security Software Suite; Serial, parallel, USB enable/disable (via BIOS); HP Credential Manager; Smart Card Manager (sold separately); 12V PUSB Cards (sold separately); Power Configurable Serial Port Card COM 3 & 4 (sold separately); Wall mount (sold separately); HP Desktop Security Lock Kit (lock and cable) (sold separately); Security cable with Kensington lock (sold separately); HP Rear Port/Cable Control Cover (sold separately)
Keyboard HP USB Standard Keyboard; HP PS/2 standard Keyboard
Power 240 W 90% efficient, active PFC
Operating Temperature Range 10 to 40°C 50 to 104°F
Operating Humidity Range 20 to 85% RH
Dimensions (W x D x H) 13.3 x 14.9 x 3.95 in
Weight 15.08 lb
Weight Note (Imperial) Exact weight depends on configuration
Energy efficiency compliance ENERGY STAR certified and EPEAT Gold registered configurations available
Warranty 3-year limited warranty, including telephone support 24/7; terms and conditions may vary by country; other HP Care Pack Services available. HP Care Pack Services are sold separately. Service levels and response times for HP Care Pack Services may vary depending on your geographic location. Service starts from date of hardware purchase. Restrictions and limitations apply. See hp.com/go/cpc for details.

Image Gallery:

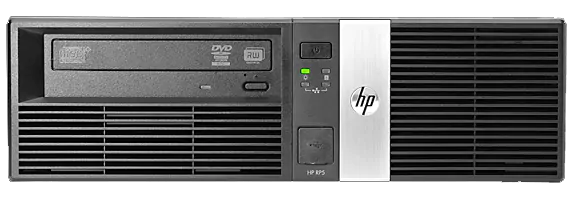

Front View

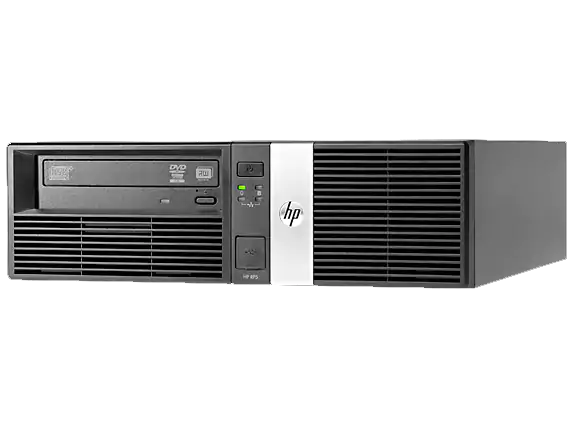

Left Angle View

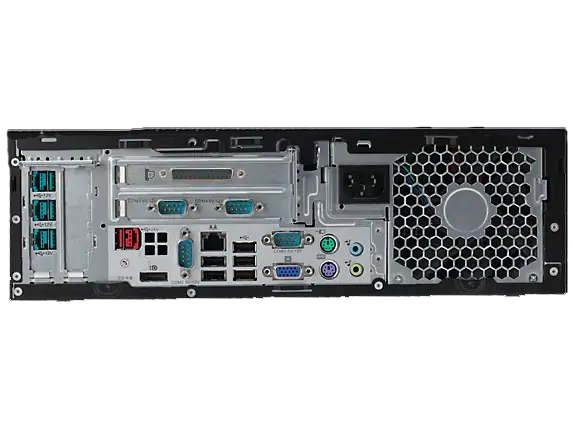

Rear View

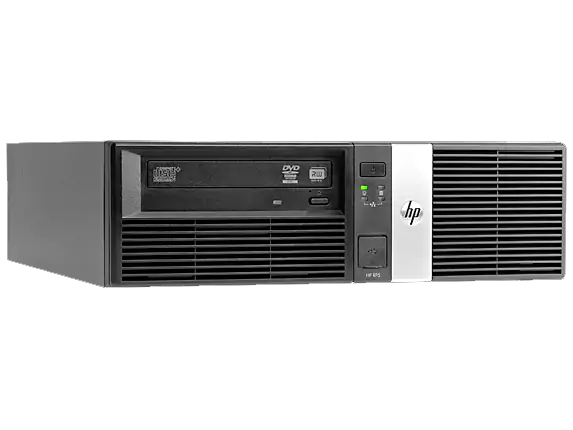

Right Angle View

Documentation:

Download the HP Retail System rp5810 Datasheet (.PDF)
