HP ZBook 17 G5 Mobile Workstation
HP's most powerful laptop

HP ZBook 17 G5 Mobile Workstation

HP Business Desktops
HP ZBook 17 G5 Mobile Workstation
HP ZBook 17 G5 17.3 Inch Mobile Workstation - I5-8300H 2.3G 8GB 256GB W10P
#4RB02UT#ABA
Our Price: $1,264.00
HP ZBook 17 G5 17.3 Inch Mobile Workstation - I7-8750H 2.2G 8GB 256GB W10P
#4RB16UT#ABA
Our Price: $1,719.00
HP ZBook 17 G5 17.3 Inch Mobile Workstation - I7-8750H 2.2G 16GB 512GB W10P
#4RG91UT#ABA
Our Price: $2,128.00
HP ZBook 17 G5 17.3 Inch Mobile Workstation - I9-8950HK 16GB 512GB W10P
#6FW01UT#ABA
Our Price: $2,326.00
HP ZBook 17 G5 17.3 Inch Mobile Workstation - I7-8850H 2.6G 16GB 512GB W10P
#4RA99UT#ABA
Our Price: $2,524.00



Overview:

Get the performance of a desktop with the freedom of a laptop. Experience relentless performance when editing multiple streams of content, manipulating complex data and developing in virtual reality on location.

HP's most powerful laptop

  • Windows 10 Pro for Workstations 64
  • Intel Xeon processor
  • Up to 128 GB memory; Up to 512 GB SSD storage; Up to 2 TB SATA Storage
  • 17.3"diagonal Full HD display
  • Integrated Intel UHD Graphics 630; Intel UHD Graphics P630
  • 1 UHS-II SD card reader; 1 smart card reade

Features:

Extreme performance to meet extraordinary demands

The HP ZBook 17 is packed with Intel Core™ i9 and Intel Xeon processors, 10 TB storage , 128 GB memory and NVIDIA Quadro P5200 graphics. And with 20% better thermals, it will stay cool and quiet even under intense multi-application workloads.

Pixel perfect display

Create stunning visuals with one billion colors on the HP DreamColor 4K UHD anti-glare display . With an integrated color calibration system and 100% Adobe RGB, your colors will be vibrant and accurate every single time.

HP's most expandable laptop, no tools required

With up to 50 million different configurations , the HP ZBook 17 can be customized to meet any demand. And when your technology needs to evolve, you can upgrade storage or memory in seconds without tools.

Featuring

  • Be productive in any situation. Windows 10 Pro and powerful security, collaboration, and connectivity features from HP help you power through your day on the HP ZBook 17.
  • Experience enhanced visualization and develop life-like VR experiences on-the-go with the latest NVIDIA Quadro P5200 graphics card.
  • Work with confidence knowing your HP ZBook 17 has been tested and certified for peak performance with leading software applications from Adobe, Autodesk, SolidWorks and more.
  • Protect your work with HP Sure View that activates a privacy screen at the touch of a button and RAID 1 that keeps a backup copy of all your files in case you ever need it.
  • Do more at once with next-gen 6-core Intel processors designed to handle complex, multithreaded apps like Adobe Premier Pro and fast core clock and boost with Autodesk 3ds Max.
  • Confidently take your work on-location knowing your ZBook 17 was built for 24 x 7 x 365 workloads and passed 14 rigorous military standard tests like shock, drop and dust.
  • Save and access large files locally with up to 10 TB storage and 5 drives. Get 6 TB local NVMe storage - up to 21x faster than standard HDD and 6x faster than SATA SSD.
  • Speed up your workflow with up to 128 GB RAM for fast performance with rendering, editing and visual effects.
  • Experience fast transfer and upload speeds with dual Thunderbolt™ 3 ports. Keep all your devices connected with USB 3.0, HDMI, SD card, Smart Card Reader and Thunderbolt™ 3 ports.
  • Innovative docking solution that takes you from laptop to desktop experience. Connect dual 4K UHD displays, charge your devices, take a conference call, and transfer data quickly.
  • Accidents happen - which is why we designed our minor spill-resistant full-sized chiclet keyboard with a drain hole so liquid comes out the bottom for easy cleanup.

Specifications:


HP ZBook 17 G5 Mobile Workstation Specifications
Available Operating system Windows 10 Pro 64 – HP recommends Windows 10 Pro.
Windows 10 Home 64
Windows 10 Pro for Workstations 64
FreeDOS 2.0
Red Hat Enterprise Linux 7 - Web support only
Ubuntu 16.04.3 LTS - Web support only
Processor family Intel Xeon processor (E-2176M, E- 2186M);
8th Generation Intel Core™ i9 processor (i9-8950HK);
8th Generation Intel Core™ i7+ processor (Core™ i7 and Intel Optane™ memory) (i7-8750H, i7-8850H);
8th Generation Intel Core™ i7 processor (i7-8750H, i7-8850H);
8th Generation Intel Core™ i5+ processor (Core™ i5 and Intel Optane™ memory) (i5-8300H, i5-8400H);
8th Generation Intel Core™ i5 processor (i5-8300H, i5-8400H)
Available Processors Intel Xeon E 2186M vPro™ with Intel UHD Graphics P630 (2.9 GHz base frequency, up to 4.8 GHz with Intel Turbo Boost Technology, 12 MB cache, 6 cores)
Intel Xeon E 2176M vPro™ with Intel UHD Graphics P630 (2.7 GHz base frequency, up to 4.4 GHz with Intel Turbo Boost Technology, 12 MB cache, 6 cores)
Intel Core™ i9 8950HK with Intel UHD Graphics 630 (2.9 GHz base frequency, up to 4.8 GHz with Intel Turbo Boost Technology, 12 MB cache, 6 cores)
Intel Core™ i7+ 8850H vPro™ (Core™ i7 and 16 GB Intel Optane™ memory) with Intel UHD Graphics 630 (2.6 GHz base frequency, up to 4.3 GHz with Intel Turbo Boost Technology, 9 MB cache, 6 cores)
Intel Core™ i7 8850H vPro™ with Intel UHD Graphics 630 (2.6 GHz base frequency, up to 4.3 GHz with Intel Turbo Boost Technology, 9 MB cache, 6 cores)
Intel Core™ i7+ 8750H (Core™ i7 and 16 GB Intel Optane™ memory) with Intel UHD Graphics 630 (2.2 GHz base frequency, up to 4.1 GHz with Intel Turbo Boost Technology, 9 MB cache, 6 cores)
Intel Core™ i7-8750H with Intel UHD Graphics 630 (2.2 GHz base frequency, up to 4.1 GHz with Intel Turbo Boost Technology, 9 MB cache, 6 cores)
Intel Core™ i5+ 8400H vPro™ (Core™ i5 and 16 GB Intel Optane™ memory) with Intel UHD Graphics 630 (2.5 GHz base frequency, up to 4.2 GHz with Intel Turbo Boost Technology, 8 MB cache, 4 cores)
Intel Core™ i5 8400H vPro™ with Intel UHD Graphics 630 (2.5 GHz base frequency, up to 4.2 GHz with Intel Turbo Boost Technology, 8 MB cache, 4 cores)
Intel Core™ i5+ 8300H (Core™ i5 and 16 GB Intel Optane™ memory) with Intel UHD Graphics 630 (2.3 GHz base frequency, up to 4.0 GHz with Intel Turbo Boost Technology, 8 MB cache, 4 cores)
Intel Core™ i5-8300H with Intel UHD Graphics 630 (2.3 GHz base frequency, up to 4.0 GHz with Intel Turbo Boost Technology, 8 MB cache, 4 cores)
Maximum memory 128 GB DDR4-2667 non-ECC SDRAM; 64 GB DDR4-2667 ECC SDRAM; 64 GB DDR4-2667 non-ECC SDRAM
Transfer rates up to 2400 MT/s.
Memory slots 4 SODIMM
Internal storage up to 2 TB 5400 rpm SATA
500 GB up to 1 TB 7200 rpm SATA
up to 500 GB 7200 rpm SATA SED
up to 500 GB 7200 rpm SATA FIPS 140-2 SED
500 GB up to 2 TB 5400 rpm SATA SSHD
256 GB up to 1 TB SATA SSD
up to 256 GB M.2 SATA SED SSD
up to 512 GB M.2 SATA FIPS 140-2 SED SSD
256 GB up to 2 TB PCIe NVMe™ M.2 SSD
256 GB up to 512 GB PCIe NVMe™ M.2 SED SSD
2 x 1 TB up to 2 x 2 TB PCIe NVMe™ M.2 SSD
Display 17.3" diagonal FHD IPS eDP anti-glare LED-backlit with ambient light sensor, 300 cd/m² (1920 x 1080);
17.3" diagonal HD SVA eDP anti-glare LED-backlit, 220 cd/m² (1600 x 900);
17.3" diagonal 4K IPS eDP + PSR LED-backlit touch screen with Corning Gorilla Glass 4 and ambient light sensor, 400 cd/m² (3840 x 2160);
HP DreamColor 17.3" diagonal 4K IPS anti-glare LED-backlit, 400 cd/m², 100% AdobeRGB (3840 x 2160)
Available Graphics Integrated: Intel UHD Graphics 630; Intel UHD Graphics P630
Discrete: NVIDIA Quadro P1000 (4 GB GDDR5 dedicated); NVIDIA Quadro P2000 (4 GB GDDR5 dedicated); NVIDIA Quadro P3200 (6 GB GDDR5 dedicated); NVIDIA Quadro P4200 (8 GB GDDR5 dedicated); NVIDIA Quadro P5200 (16 GB GDDR5 dedicated); AMD Radeon™ Pro WX 4170 (4 GB GDDR5 dedicated)
(Intel UHD Graphics 630 integrated on Core™ i7, Core™ i5 and Core™ i9 processors. Intel UHD Graphics P630 integrated on Xeon processors.)
Audio HP tuned Bang & Olufsen, dual stereo speakers, HP World Facing Microphone supporting HP Noise Reduction software, dual array digital microphone, functions keys for volume up and down, combo microphone/headphone jack, HD audio, HP Clear Sound Amp
Keyboard HP Collaboration Keyboard, full-size, spill-resistant, backlit, with drain and DuraKeys, clickpad with image sensor and glass surface, multitouch gestures and taps enabled
Pointing device Image sensor touchpad with on/off button, two-way scroll, gestures, three buttons; Pointstick with three additional pointstick buttons; Touchpad with Color Calibration Sensor
Communications LAN: Integrated Intel I219-LM GbE;
WLAN: Intel Dual Band Wireless-AC 9560 802.11ac (2x2) Wi-Fi and Bluetooth 5.0 Combo; Intel Dual Band Wireless-AC 9560 802.11ac (2x2) Wi-Fi and Bluetooth 5.0 Combo, non-vPro™;
WWAN: HP lt4132 LTE/HSPA+ 4G Mobile Broadband Module; Intel XMM™ 7360 LTE Advanced (Optional Near Field Communication (NFC) module)
Expansion slots 1 UHS-II SD card reader; 1 smart card reader (SD supports next generation secure digital and is backward compatible to SDHC, SDXC)
Ports and Connectors Left side: 1 RJ-45; 1 USB 3.0; 1 USB 3.0 (charging)
Right side: 1 HDMI 2.0; 1 headphone/microphone combo; 1 power connector; 1 Mini DisplayPort™ 1.3; 2 USB 3.1 Type-C™ Thunderbolt™ 3 (DisplayPort™ 1.3)
Camera HP Privacy HD Camera 720p; HP Privacy HD IR Camera 720p, face authentication with Windows Hello
Available Software Bing search for IE11; Buy Office; HP ePrint Driver + JetAdvantage; HP Hotkey Support; HP Noise Cancellation Software; HP Performance Advisor; HP Recovery Manager; HP Remote Graphics Software; HP Support Assistant; HP Velocity; Skype for Business Certified; HP LAN-WLAN Protection; HP JumpStart; HP Client Security Suite Gen4
Security management Absolute persistence module; Common Criteria EAL4+ Augmented Certified Discrete TPM 2.0 Embedded Security Chip; DriveLock and Automatic DriveLock; HP Device Access Manager; HP FingerPrint Sensor; HP Password Manager; HP Power On Authentication; HP Security Manager; Pre-boot authentication; HP Sure Click; Measured Boot; HP BIOS Config Utility (BCU); HP Client Catalog; HP Driver Packs; HP System Software Manager (SSM); HP Manageability Integration Kit Gen2; HP BIOSphere with Sure Start Gen4; HP Secure Disk Erase; HP Host Based Mac Address; Windows Defender
Battery type HP Long Life 6-cell, 96 Wh Li-ion polymer
Dimensions 16.4 x 11.3 x 1.3 in;
41.6 x 28.8 x 3.3 cm (Height measurement taken at front of notebook.)
Weight Starting at 7 lb;
Starting at 3.2 kg (Weight varies by configuration and components.)
Environmental Low halogen
Energy efficiency compliance ENERGY STAR certified and EPEAT Gold registered configurations available
Warranty 3 year or 1 year limited warranty options available, depending on country. Batteries have the same 1 year or 3 year limited warranty as the platform. 24/7 operation will not void the HP warranty. Optional HP Care Pack Services are extended service contracts which go beyond your standard limited warranties.

Image Gallery:

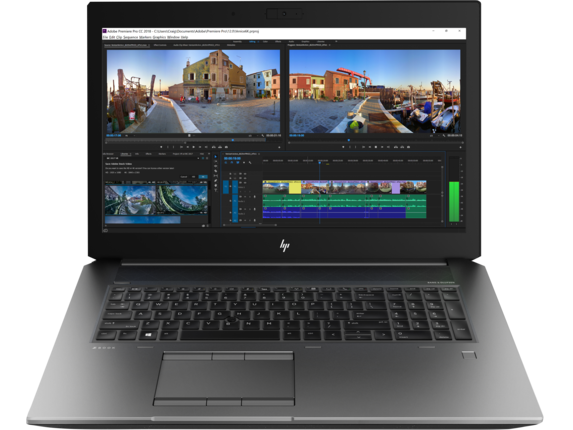

Front View

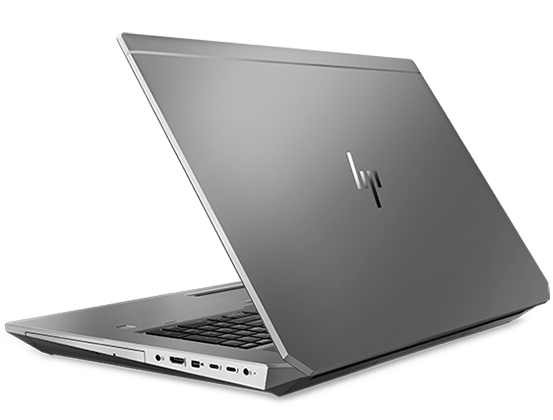

Rear View

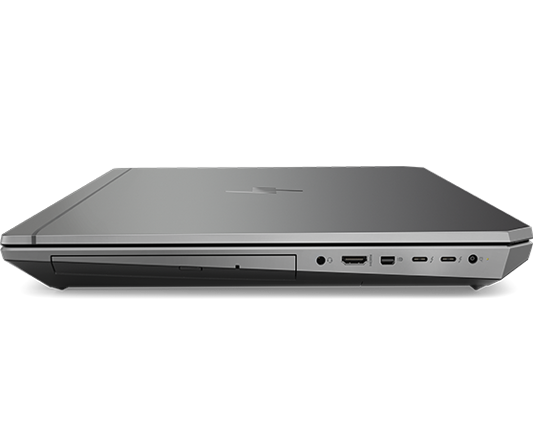

Side View

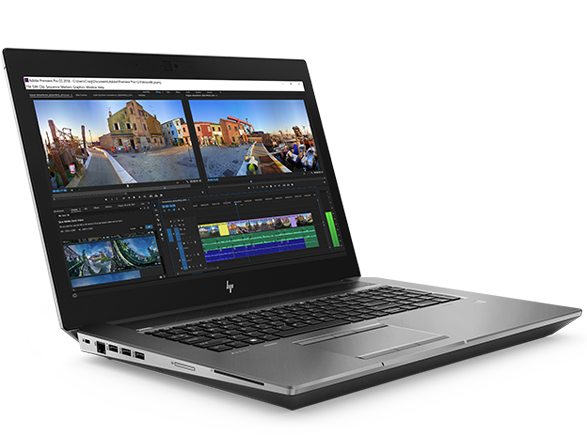

Right Angle View

Documentation:

Download the HP ZBook 17 G5 Mobile Workstation Datasheet (.PDF)
