HP ZBook Studio G5 Mobile Workstation
Smaller, faster and brighter than ever

HP ZBook Studio G5 Mobile Workstation

HP Business Desktops
HP ZBook Studio G5 Mobile Workstation
HP ZBook Studio G5 15.6 Inch Mobile Workstation - I5-8300H 2.3G 8GB 256GB W10P
#4NH77UT#ABA
Our Price: $1,719.00
HP ZBook Studio G5 15.6 Inch Mobile Workstation - I7-8750H 2.2G 8GB 256GB W10P
#4NL28UT#ABA
Our Price: $1,781.00
HP ZBook Studio G5 15.6 Inch Mobile Workstation - I7-8750H 2.2G 8GB 256GB W10P
#4NL25UT#ABA
Our Price: $1,880.00
HP ZBook Studio G5 15.6 Inch Mobile Workstation - I7-8750H 2.2G 16GB 512GB W10P
#4NM08UT#ABA
Our Price: $2,276.00
HP ZBook Studio G5 15.6 Inch Mobile Workstation - XE-2176M 16GB 512GB W10P
#4NH78UT#ABA
Our Price: $2,573.00



Overview:

Get the perfect blend of ultra-slim design & pro-grade performance in the new HP ZBook Studio. Remove limitations from your creative workflow with fast editing and rendering, and bring your ideas to life on HP's brightest 4K UHD laptop display.

Smaller, faster and brighter than ever

  • Windows 10 Pro 64
  • 8th Generation Intel Core™ i5 processor
  • 8 GB memory; 256 GB SSD storage
  • 5.6" diagonal FHD IPS eDP anti-glare LED-backlit ambient light sensor, 400 cd/m² (1920 x 1080)
  • Integrated Intel UHD Graphics 630

Features:

HP's brightest 4K UHD laptop display

See your work in one billion vibrant colors on the HP DreamColor display with 600 nits of brightness. Master color-critical work with 100% Adobe RGB coverage that helps maintain perfect color every single time.

More powerful than ever before

Get ultra fast performance with the latest Intel Core™ i9 processors and 64 GB memory. Render photorealistic images with certified NVIDIA Quadro P2000 graphics - optimized for stability and peak performance with professional software apps.

HP's most secure mobile workstation

Protect your work with industry-leading security features. A touch of a button activates HP Sure View privacy screen to protect against visual hacking and RAID 1 maintains a backup copy of all your files in case you ever need it.

Featuring

  • Be productive in any situation. Windows 10 Pro and powerful security, collaboration, and connectivity features from HP help you power through your day on the HP ZBook Studio.
  • Do more at once with next-generation 6-core Intel Core™ i9 or Intel Xeon processors designed to handle complex, multi-threaded applications like Adobe Premier Pro.
  • Seamlessly edit your designs and render multi-layered files with certified NVIDIA Quadro P2000 graphics, optimized for stability and performance with professional software apps.
  • Create seamlessly. Save and access large files locally with up to 4 TB local NVMe storage, up to 21 times faster than standard HDD storage and six times faster than SATA SSD.
  • Get remarkable, real time performance running multiple applications simultaneously with up to 64 GB RAM.
  • Take your work on the road with up to 16 hours of battery life for maximum productivity. When you need it, recharge ultra-fast (50% in just 45 minutes).
  • Travel anywhere with this powerful laptop that weighs only 4.4 pounds. Get a full-sized, backlit minor spill-resistant keyboard for worry-free, flexible working on-the-go.
  • Take your work outdoors with the anti-glare display and built in ambient light sensor that dims or brightens based on your surroundings.
  • Host virtual meetings with the HP Collaboration Keyboard, HP World Facing Microphone & optional web cam. Get premium audio with 4 speakers tuned by Bang & Olufsen & a discrete amp.
  • Experience fast transfer and upload speeds with dual Thunderbolt™ 3 ports. Keep all your devices and peripherals connected with 2 USB 3.0, 1 HDMI and 1 SD card port.
  • Confidently take your work anywhere knowing your HP ZBook Studio was built for 24 x 7 x 365 workloads and passed 14 rigorous military standard tests like shock, drop and dust.
  • Innovative docking solution that takes you from laptop to desktop experience. Connect dual 4K UHD displays, charge your devices, take a conference call, and transfer data quickly.

Specifications:


HP ZBook Studio G5 Mobile Workstation Specifications
Available Operating system Windows 10 Pro 64 – HP recommends Windows 10 Pro.
Windows 10 Home 64
Windows 10 Pro for Workstations 64
Red Hat Enterprise Linux 7 - Web support only
FreeDOS 2.0
Processor family Intel Xeon processor (E-2176M, E- 2186M);
8th Generation Intel Core™ i9 processor (i9-8950HK);
8th Generation Intel Core™ i7+ processor (Core™ i7 and Intel Optane™ memory) (i7-8750H, i7-8850H);
8th Generation Intel Core™ i7 processor (i7-8750H, i7-8850H);
8th Generation Intel Core™ i5+ processor (Core™ i5 and Intel Optane™ memory) (i5-8300H, i5-8400H);
8th Generation Intel Core™ i5 processor (i5-8300H, i5- 8400H)
Available Processors Intel Xeon E 2186M vPro™ with Intel UHD Graphics P630 (2.9 GHz base frequency, up to 4.8 GHz with Intel Turbo Boost Technology, 12 MB cache, 6 cores)
Intel Xeon E 2176M vPro™ with Intel UHD Graphics P630 (2.7 GHz base frequency, up to 4.4 GHz with Intel Turbo Boost Technology, 12 MB cache, 6 cores)
Intel Core™ i9 8950HK with Intel UHD Graphics 630 (2.9 GHz base frequency, up to 4.8 GHz with Intel Turbo Boost Technology, 12 MB cache, 6 cores)
Intel Core™ i7 8850H vPro™ with Intel UHD Graphics 630 (2.6 GHz base frequency, up to 4.3 GHz with Intel Turbo Boost Technology, 9 MB cache, 6 cores)
Intel Core™ i7-8750H with Intel UHD Graphics 630 (2.2 GHz base frequency, up to 4.1 GHz with Intel Turbo Boost Technology, 9 MB cache, 6 cores)
Intel Core™ i5 8400H vPro™ with Intel UHD Graphics 630 (2.5 GHz base frequency, up to 4.2 GHz with Intel Turbo Boost Technology, 8 MB cache, 4 cores)
Intel Core™ i5-8300H with Intel UHD Graphics 630 (2.3 GHz base frequency, up to 4.0 GHz with Intel Turbo Boost Technology, 8 MB cache, 4 cores)
Maximum memory 64 GB DDR4-2667 non-ECC SDRAM; 32 GB DDR4-2667 ECC SDRAM; 32 GB DDR4-2667 non-ECC SDRAM
Transfer rates up to 2667 MT/s.
Memory slots 2 SODIMM
Internal storage up to 2 TB 5400 rpm SATA
500 GB up to 1 TB 7200 rpm SATA
500 GB 7200 rpm SATA SED
500 GB 7200 rpm SATA FIPS 140-2 SED
500 GB up to 2 TB SATA SSHD
256 GB up to 1 TB SATA SSD
256 GB M.2 SATA SED SSD
256 GB up to 2 TB PCIe NVMe™ M.2 SSD
256 GB up to 512 GB PCIe NVMe™ M.2 SED SSD
2 x 1 TB up to 2 x 2 TB PCIe NVMe™ M.2 SSD
Display HP DreamColor 15.6" diagonal 4K IPS anti-glare LED-backlit, 600 cd/m², 100% AdobeRGB (3840 x 2160)
15.6" diagonal 4K IPS eDP + PSR anti-glare LED-backlit and ambient light sensor, 400 cd/m² (3840 x 2160)
15.6" diagonal FHD IPS eDP + PSR anti-glare LED-backlit with ambient light sensor, 400 cd/m² (1920 x 1080)
HP Sure View 15.6" diagonal FHD IPS eDP + PSR LED-backlit touch screen with Corning Gorilla Glass 4, 650 cd/m² (1920 x 1080)
Available Graphics Integrated: Intel UHD Graphics 630; Intel UHD Graphics P630
Discrete: NVIDIA Quadro P1000 (4 GB GDDR5 dedicated); NVIDIA Quadro P2000 (4 GB GDDR5 dedicated) (Intel UHD Graphics 630 integrated on Core™ i7, Core™ i5 and Core™ i9 processors. Intel UHD Graphics P630 integrated on Xeon processors.)
Audio HP tuned Bang & Olufsen, quad stereo speakers, HP World Facing Microphone supporting HP Noise Reduction Software, keyboard functions keys for volume up and down, combo microphone/headphone jack, HD audio, HP Clear Sound Amp
Communications WLAN: Intel Dual Band Wireless-AC 9560 802.11ac (2x2) Wi-Fi and Bluetooth 5.0 Combo
Intel Dual Band Wireless-AC 9560 802.11ac (2x2) Wi-Fi and Bluetooth 5.0 Combo, non-vPro™ ; (Optional Near Field Communication (NFC) module)
Expansion slots 1 UHS-II SD card reader (SD supports next generation secure digital and is backward compatible to SDHC, SDXC)
Ports and Connectors Left side: 1 USB 3.0 (charging)
Right side: 1 HDMI 1.4; 1 headphone/microphone combo; 1 power connector; 1 RJ-45; Ultra Slim Dock Connector; 1 USB Type-C™ (Thunderbolt™ 3, USB 3.1)
Input devices HP Collaboration Keyboard, full-size, spill-resistant, backlit, with drain and DuraKeys, clickpad with image sensor and glass surface, multi-touch gestures and taps enabled; Image sensor clickpad with on/off button, two-way scroll, gestures, two buttons;
Camera HP Privacy HD IR Camera 720p, face authentication with Windows Hello
Available Software Bing search for IE11; Buy Office; HP ePrint Driver + JetAdvantage; HP Hotkey Support; HP Noise Cancellation Software; HP Performance Advisor; HP Recovery Manager; HP Remote Graphics Software; HP Support Assistant; HP Velocity; Skype for Business Certified; HP LAN-WLAN Protection; HP JumpStart; HP Client Security Suite Gen4
Security management Absolute persistence module; Common Criteria EAL4+ Augmented Certified Discrete TPM 2.0 Embedded Security Chip; DriveLock and Automatic DriveLock; HP Device Access Manager; HP FingerPrint Sensor; HP Password Manager; HP Power On Authentication; HP Security Manager; Pre-boot authentication; HP Sure Click; Measured Boot; HP BIOS Config Utility (BCU); HP Client Catalog; HP Driver Packs; HP System Software Manager (SSM); HP Manageability Integration Kit Gen2; HP BIOSphere with Sure Start Gen4; HP Secure Disk Erase; HP Host Based Mac Address; Windows Defender
Power 150 W Slim Smart external AC power adapter
Battery type HP Long Life 6-cell, 95.6 Wh Li-ion polymer; HP Long Life 4-cell, 64 Wh Li-ion polymer
Dimensions 14.17 x 10 x 0.35 to 0.69 in (front to rear)
Weight Starting at 4.4 lb;
Environmental Low halogen
Energy efficiency compliance ENERGY STAR certified and EPEAT registered configurations available
Warranty 3 year or 1 year limited warranty options available, depending on country. Batteries have the same 1 year or 3 year limited warranty as the platform. 24/7 operation will not void the HP warranty. Optional HP Care Pack Services are extended service contracts which go beyond your standard limited warranties.

Image Gallery:

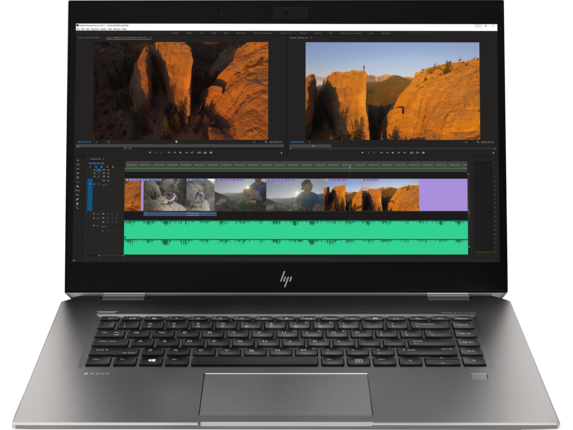

Front View

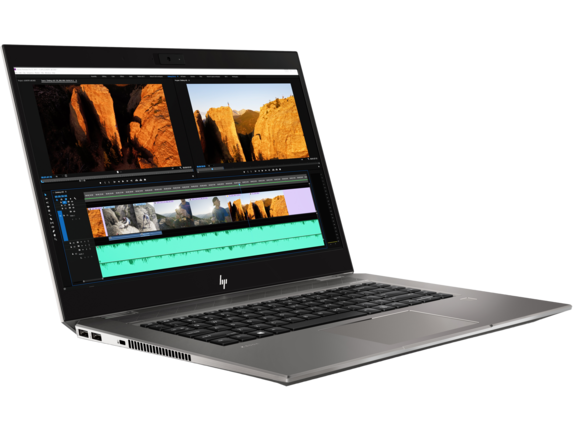

Left Angle View

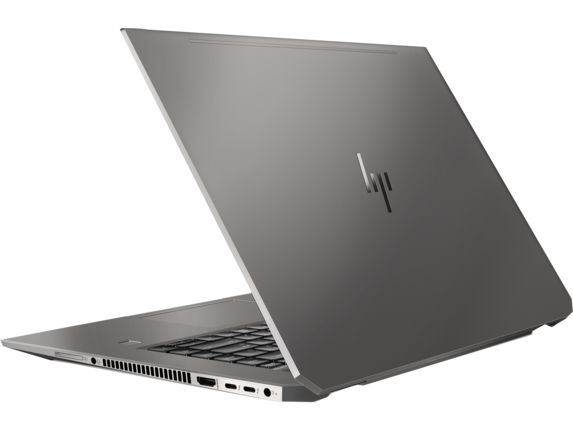

Rear View

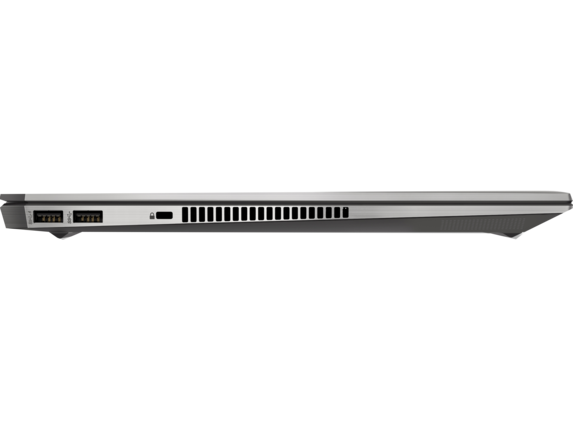

Left Side View

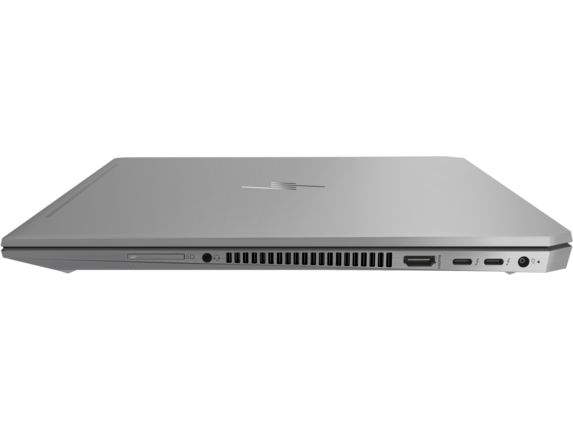

Rear View

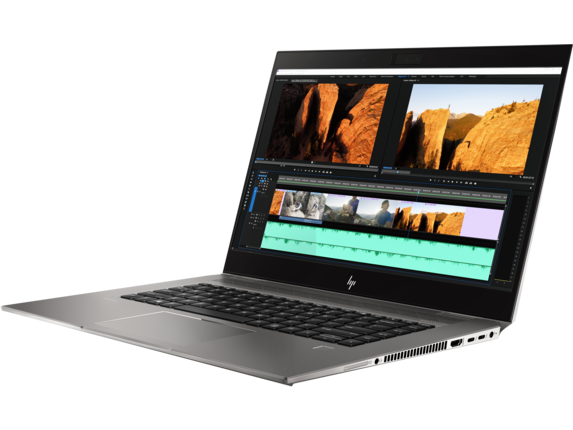

Right Angle View

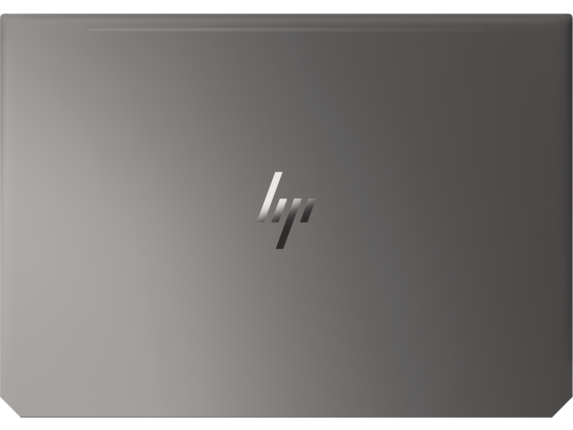

Top View

Documentation:

Download the HP ZBook Studio G5 Mobile Workstation Datasheet (.PDF)
